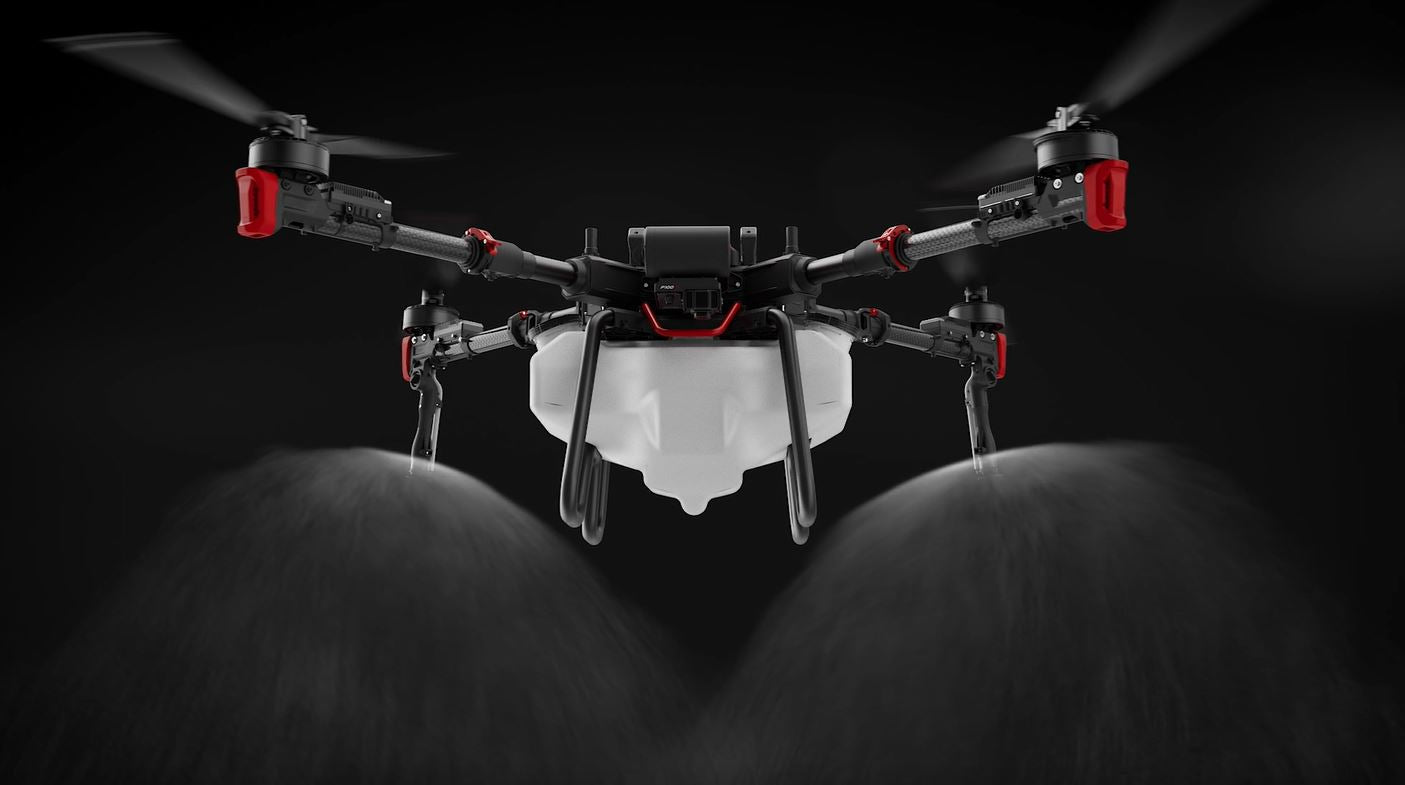

XAG P100 Pro 60L Standard (6B2C) Kit
This Kit includes :
- XAG P100 Pro 2023 Agricultural Drone (INTL) (SKU 09-007-00136) — 1 pc
- XAG RevoSpray P3 (60L) (INTL) (SKU 09-023-00113) — 1 pc

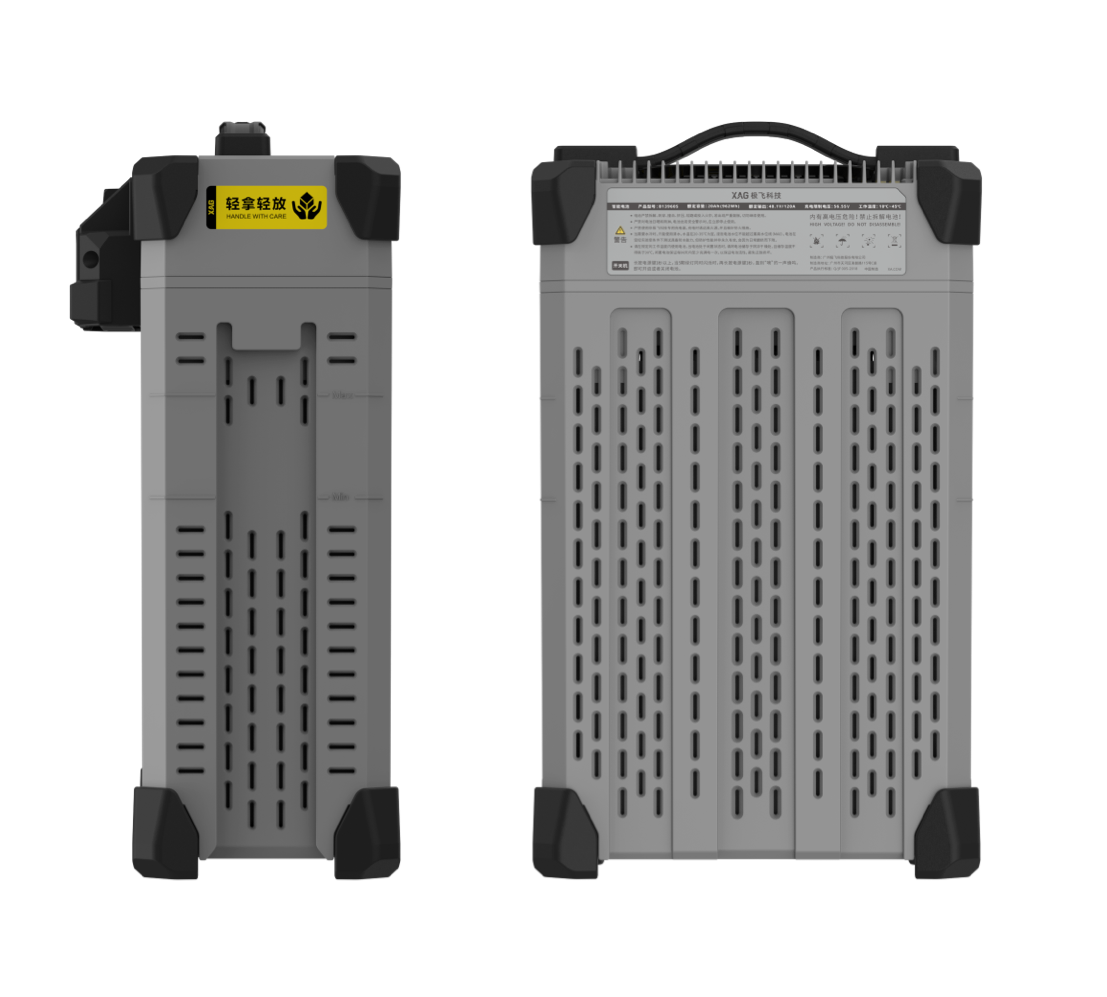

- XAG B13970S Smart Supercharge Battery (INTL) (SKU 09-017-00064) — 6 pcs

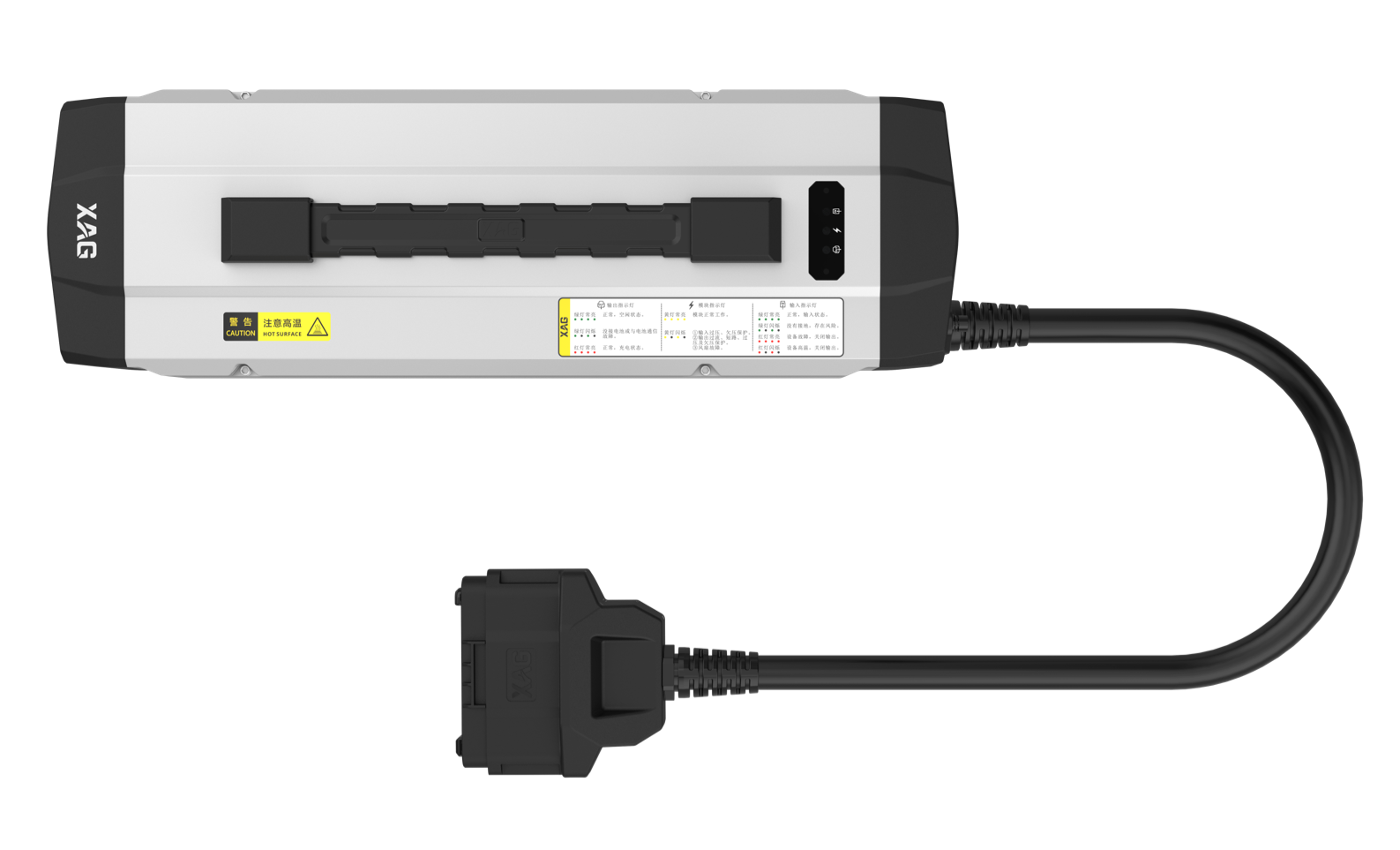

- XAG CM13600 Charger (INTL) (SKU 09-017-00042) — 2 pcs
- XAG Plug Power Cord-US (for CM13600 Charger) (SKU 01-027-02824) — 2 pcs
- XAG 6kW Parallel Charging Kit (SKU 05-002-02311) — 1 pc
- XAG 2024 Battery Cooling Tower Plug Modification Kit (SKU 05-002-02299) — 2 pcs
- XAG 2024 Battery Cooling Tower (INTL) (SKU 09-017-00065) — 2 pcs
- XAG Agricultural Remote Controller3 Pro (with RTK) (INTL) (SKU 09-016-00053) — 1 pc
- XAG Station Tripod (INTL) (SKU 13-001-00056) — 1 pc
- XAG XRTK4 Rover (SKU 09-010-00036) — 1 pc
- XAG strap (SKU 02-024-00036) — 1 pc
Product Features
- Centimeter-Level RTK Positioning – Real-time kinematic positioning for precise autonomous navigation and even application across fields.
- 4D Imaging Radar & Terrain Radar – Obstacle detection and terrain-adaptive altitude control to maintain consistent height above crops.
- Dual RevoSpray 3 Pump System – Two peristaltic pumps delivering up to ~22 L/min for efficient spraying performance.
- Smart Liquid Tank – 60 L spray tank with automatic liquid level sensing for accurate chemical use.
- High Payload Capacity – Up to 50 kg useful load for spraying, seeding, or spreading operations.
- Efficient Field Coverage – Spray widths of approximately 5–10 m and spread widths of approximately 3–7 m under typical conditions.
- Foldable Quadcopter Design – Collapsible arms and frame for easier transport and storage.
- IPX6K Weather Protection – Water-resistant construction designed for rugged agricultural environments.
- Advanced Remote Control Support – Works with XAG ARC3 Pro and other compatible controllers.
- Smart App Integration – Mobile app interfaces for mission planning, control, and monitoring.
- All-Weather Operational Capability – Built to perform reliably in a wide range of field and weather conditions.
Aerial Platform
| Parameter | Details |
|---|---|
| Dimensions (Unfolded) | 2927 × 2868 × 323 mm (blades unfolded) |
| Dimensions (Folded) | 893 × 1095 × 345 mm (blades & arms folded) |
| Empty Weight | 46 kg (payload system excluded, battery included) |
| Rated Payload | 50 kg |
| Diagonal Wheelbase | 2094 mm |
| Protection Rating | IPX6K |
| Max Flight Speed | 13.8 m/s |
| Hovering Precision (RTK) | ±10 cm horizontal/vertical |
| Max Flight Distance | 2000 m |
Propulsion & Spraying System
| Motors | 4 × 4100 W rated power (Model A50) |
| Max Thrust (Single Motor) | 52 kg |

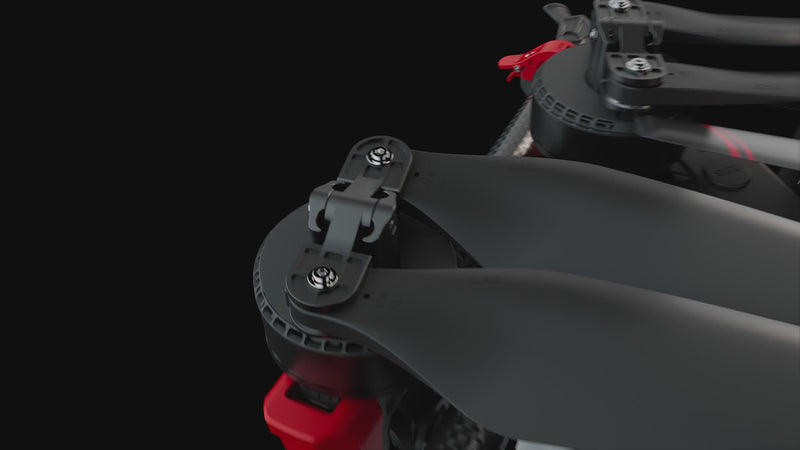

| Propellers | 56-inch foldable propellers |
| ESC Model | VC13200 (230 A max, 110 A continuous) |
| Spray Tank (RevoSpray 3) | 50 L / 50 kg payload |
| Max Flow Rate | 22 L/min (dual peristaltic pumps) |
| Flow Rate (Single Pump) | 0.5 - 11 L/min |
| Droplet Size | 60-400 μm |
| Spray Width | 5-10 m |
| Spray Efficiency | Up to 19 ha/h (open fields) / 2 ha/h (orchards) |
Spreading & Sensing Systems

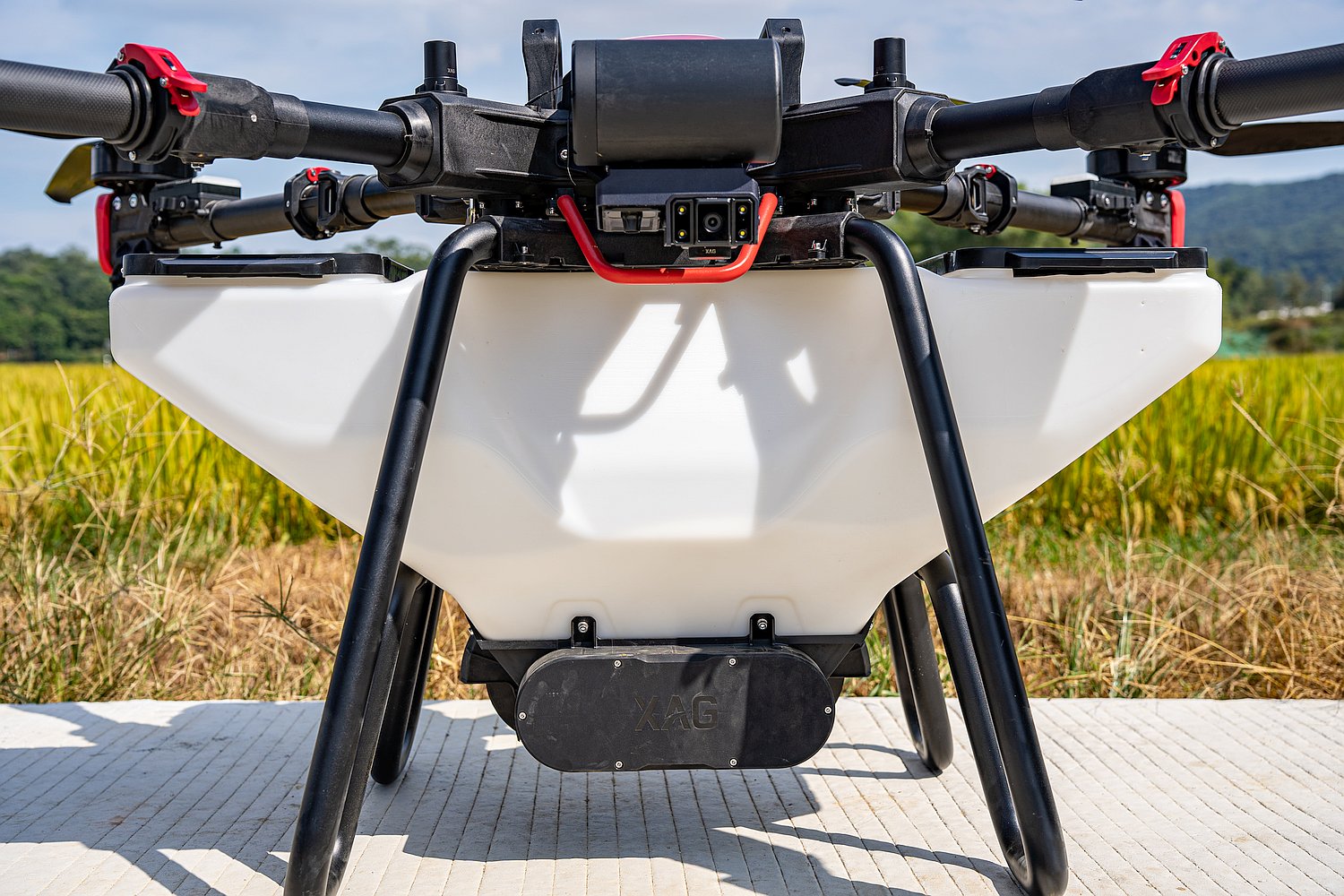

| Granule Container (RevoCast 3) | 80 L / 50 kg rated payload |
| Max Spread Rate | 150 kg/min (tested with urea) |
| Spread Width | 3-7 m |
| Applicable Granule Size | 1-6 mm |
| Spreading Efficiency | 1300 kg/h (fertilizer) / 30 ha/h (feed) |
| 4D Imaging Radar | RD24912 | 1.5-80 m detection | ±40° horizontal, +90° to -45° vertical FOV |
| Obstacle Avoidance | 2.5 m distance | ≥1.5 m relative height | ≤13.8 m/s speed |
| Terrain Radar | TR24S100 | 0.5-100 m range | 1-30 m fixed height | 45° max gradient |
| FPV Camera | 1080p 30 fps | 1/2.9" CMOS sensor | H.264 encoding |

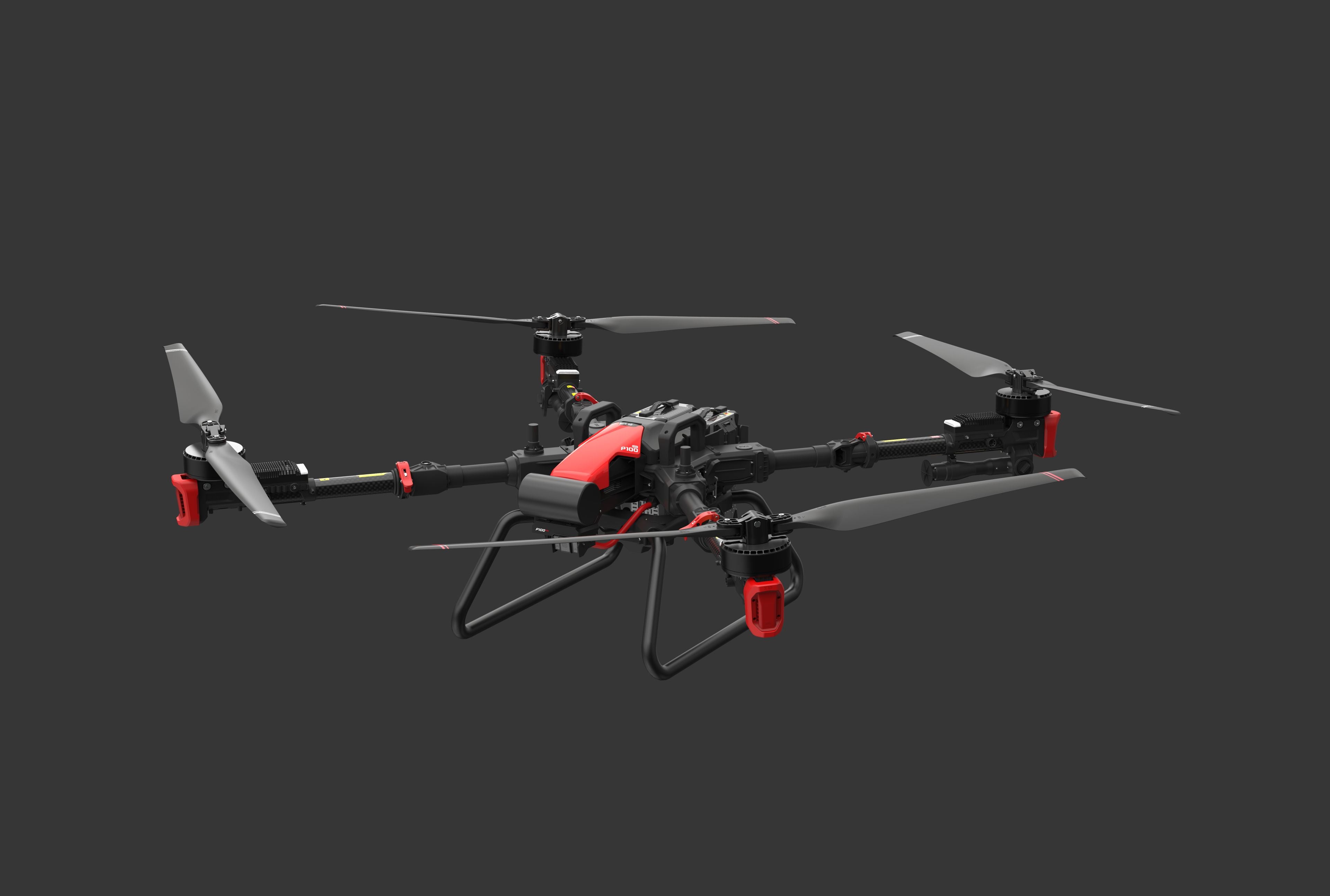

| Mapping Camera (RealTerra 2) | 12 MP | 2.7 mm focal length | Mechanical shutter | JPEG format |
Power & Control
| Battery | B13960S (962 Wh, 20000 mAh, 48.1V) |
| Max Charging Current | 100 A (5C) |
| Charge Time | 11 minutes (30%-95% with GC4000+ water cooling) |
| Charger (CM13600) | 3400W (220-240V) / 1300W (100-120V) |
| SuperCharge Station | GC4000+ (3.4 kW rated, 5.1 kW max, 223cc engine) |
| Remote Controller | ARC3 Pro (6-hour battery, 1 km range, 2.4/5.8 GHz) |
| Control Stick | ACS2 (800 m range, 2.4 GHz) |
| Operating Temperature | 0-40°C (drone) | -20 to 55°C (controllers) |
Note: Performance may vary based on environment and operating conditions. Flight parameters are measured in controlled laboratory tests. Always follow local regulations and official product guidelines. Contact for demos or customization.

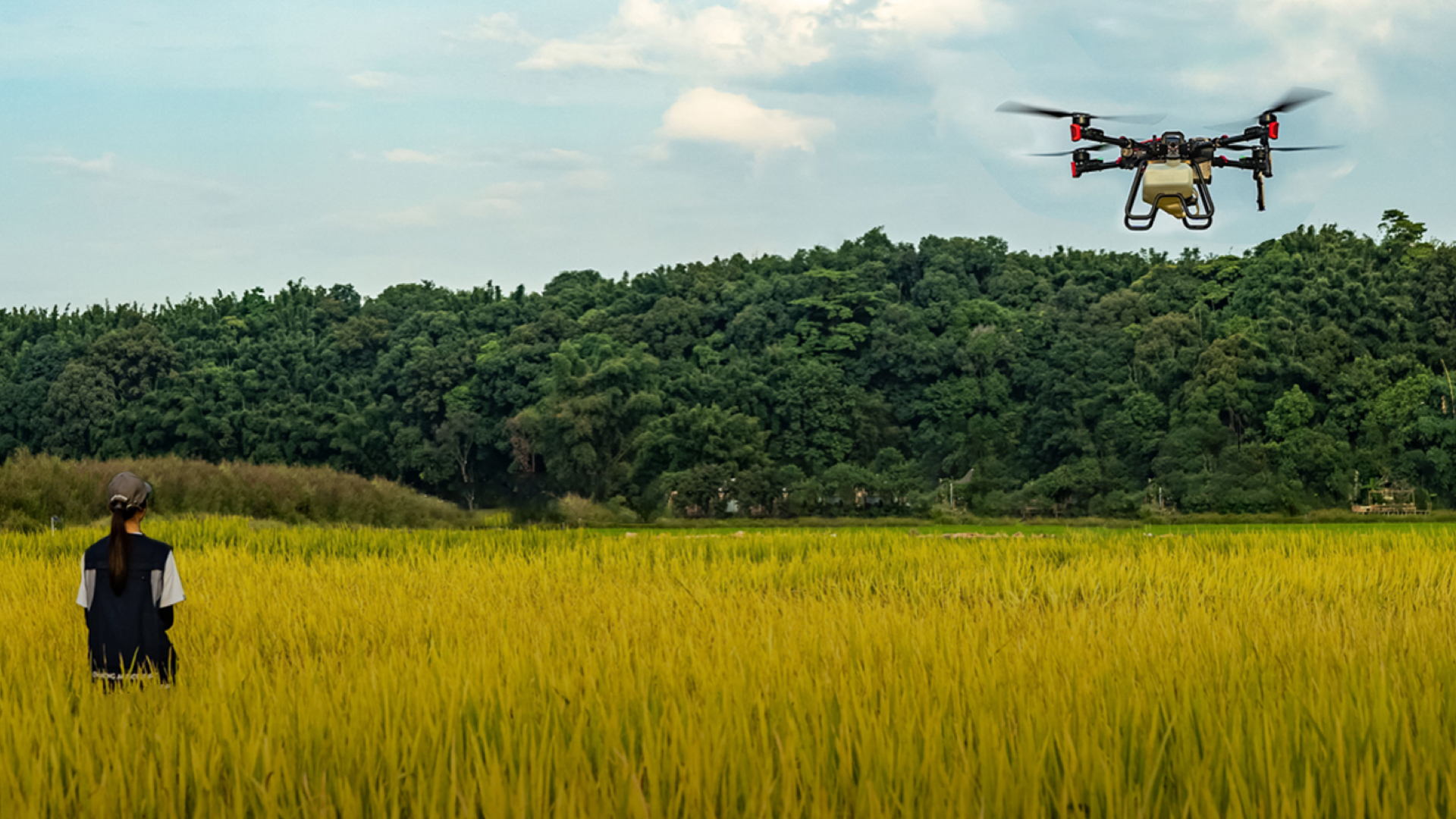

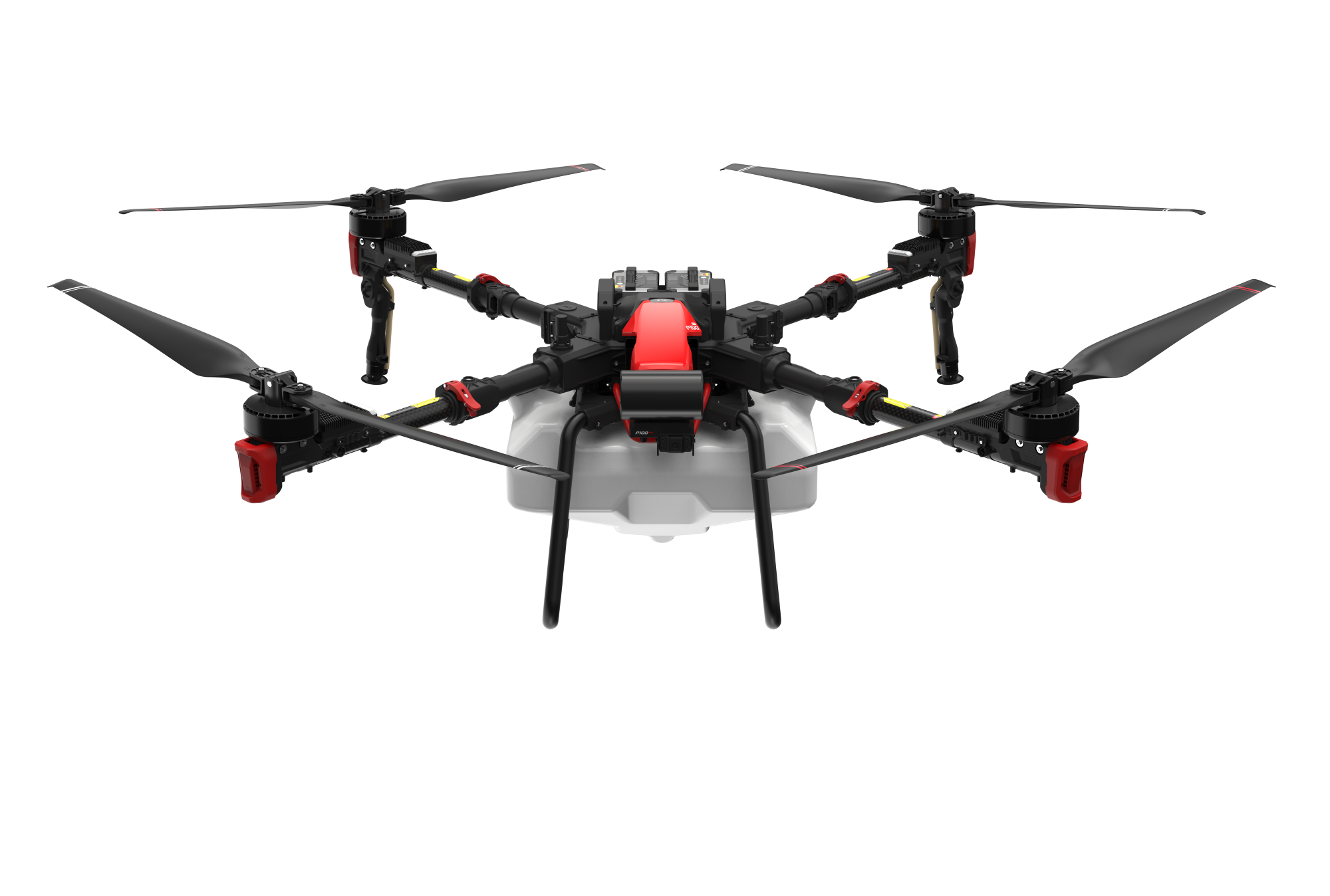

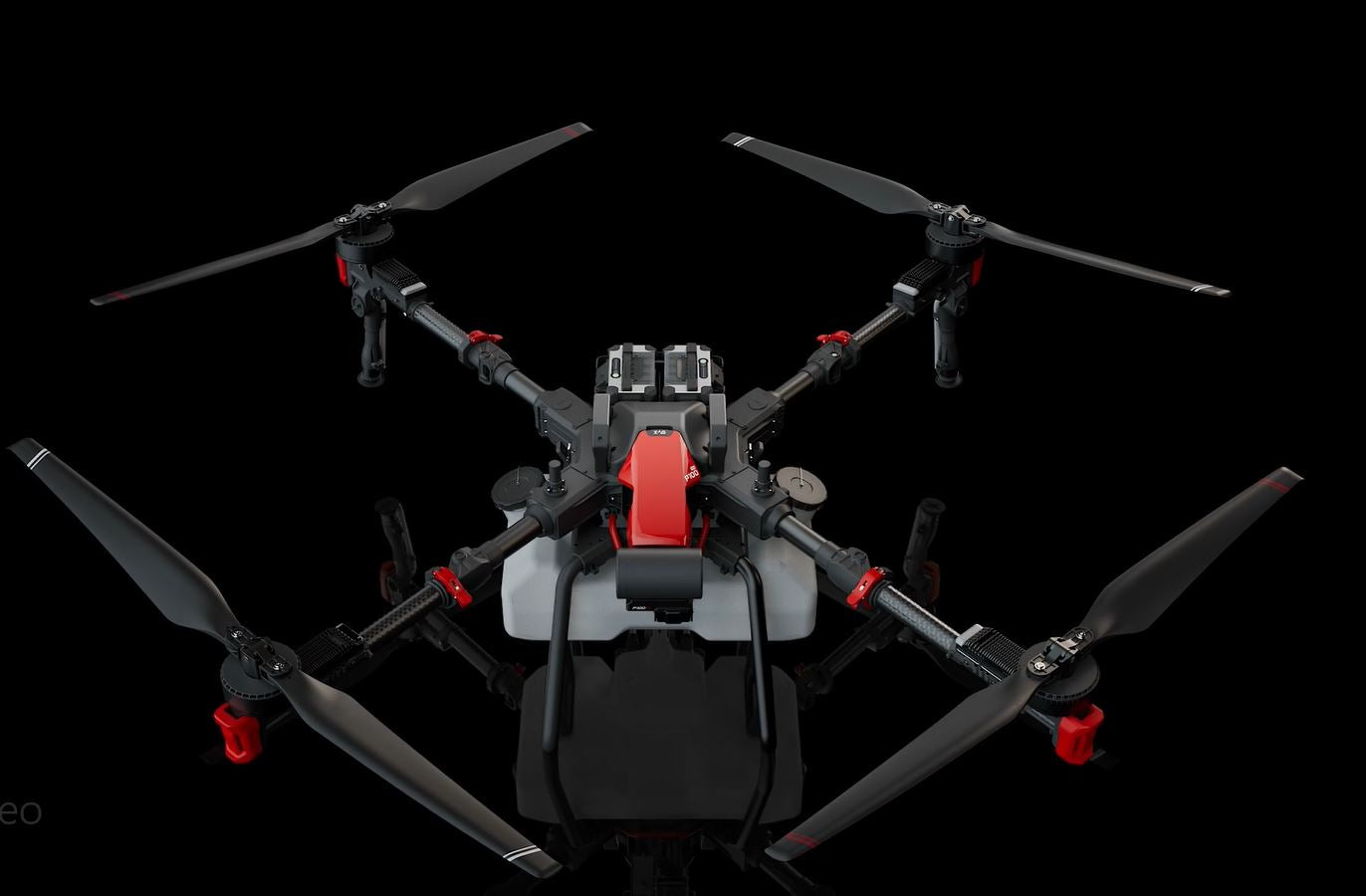

New design of a foldable quadcopter
Brings 50kg payload. The finer XAG RevoSpray and RevoCast, allow efficiency breakthrough once again.

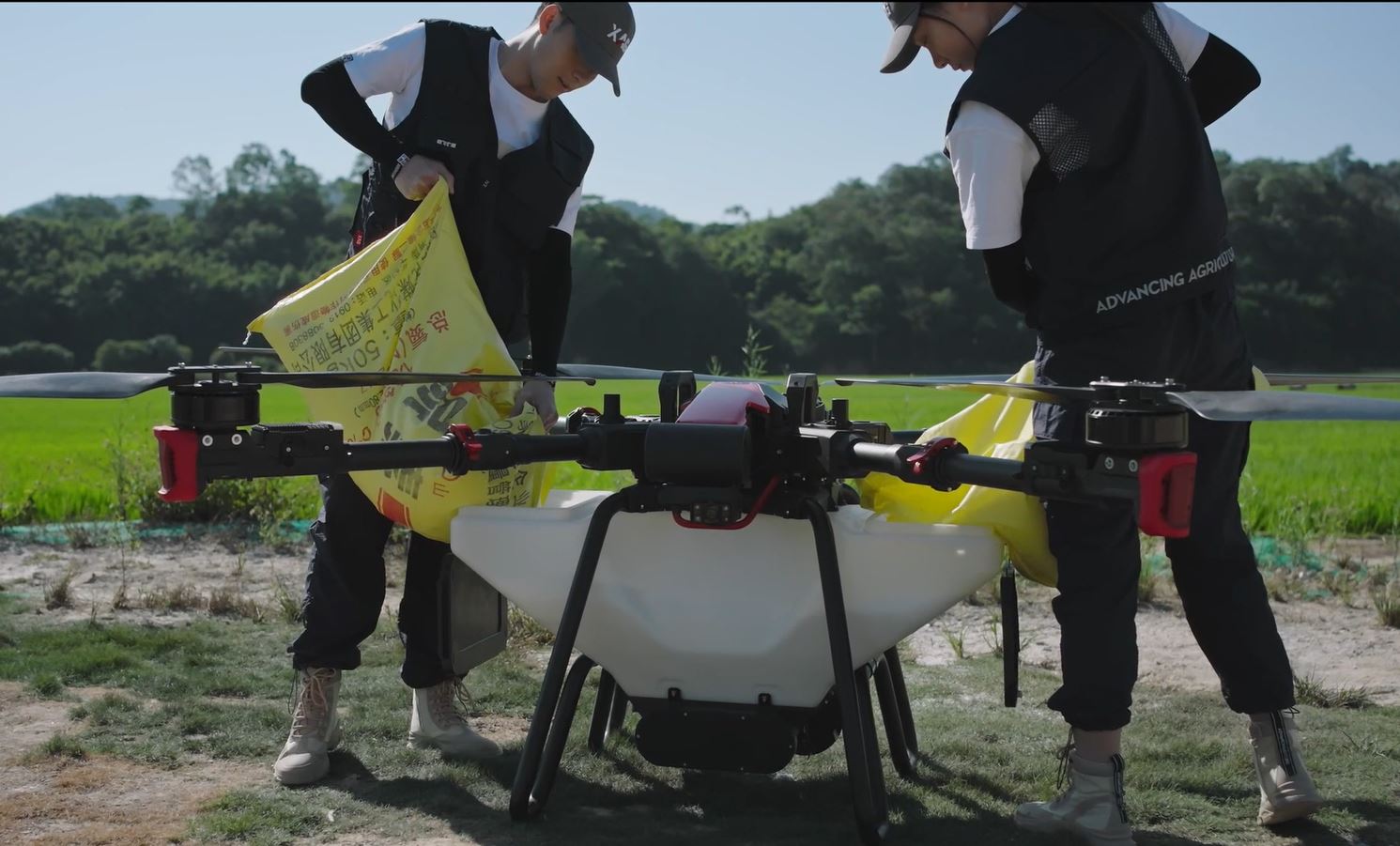

50 kg payload, yet easy to load and transport.

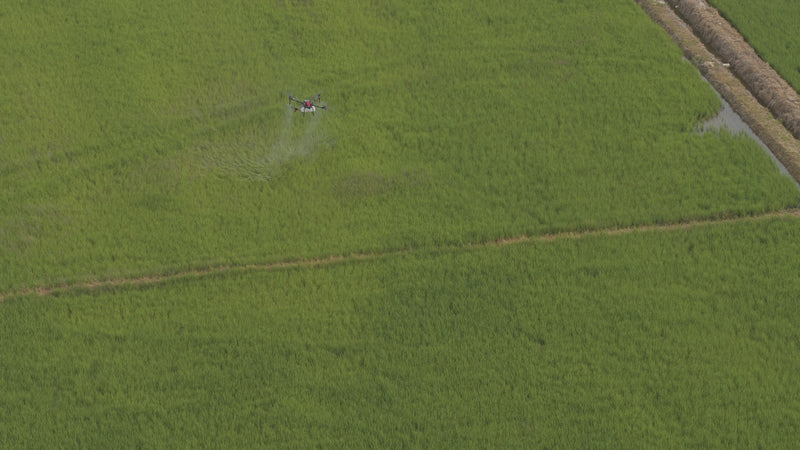

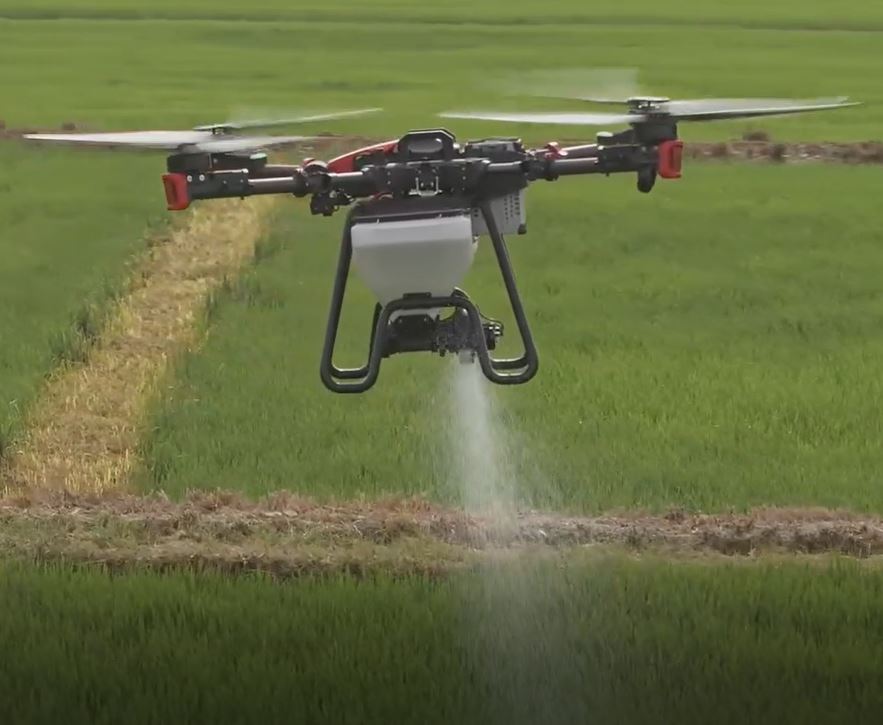

Rice Weeding
Dosage｜12L/ha
Flight speed｜13.8m/s
Efficiency｜28ha/h

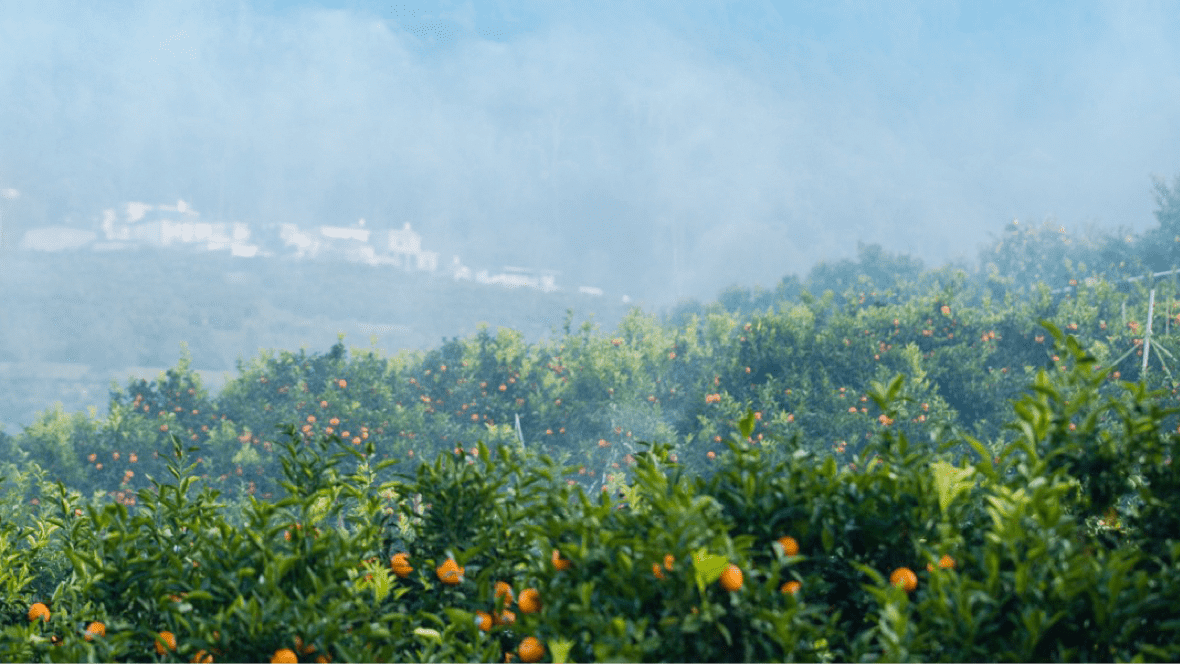

Citrus Disease and Pest Control
Dosage｜150L/ha
Flight speed｜2.5m/s
Efficiency｜2ha/h

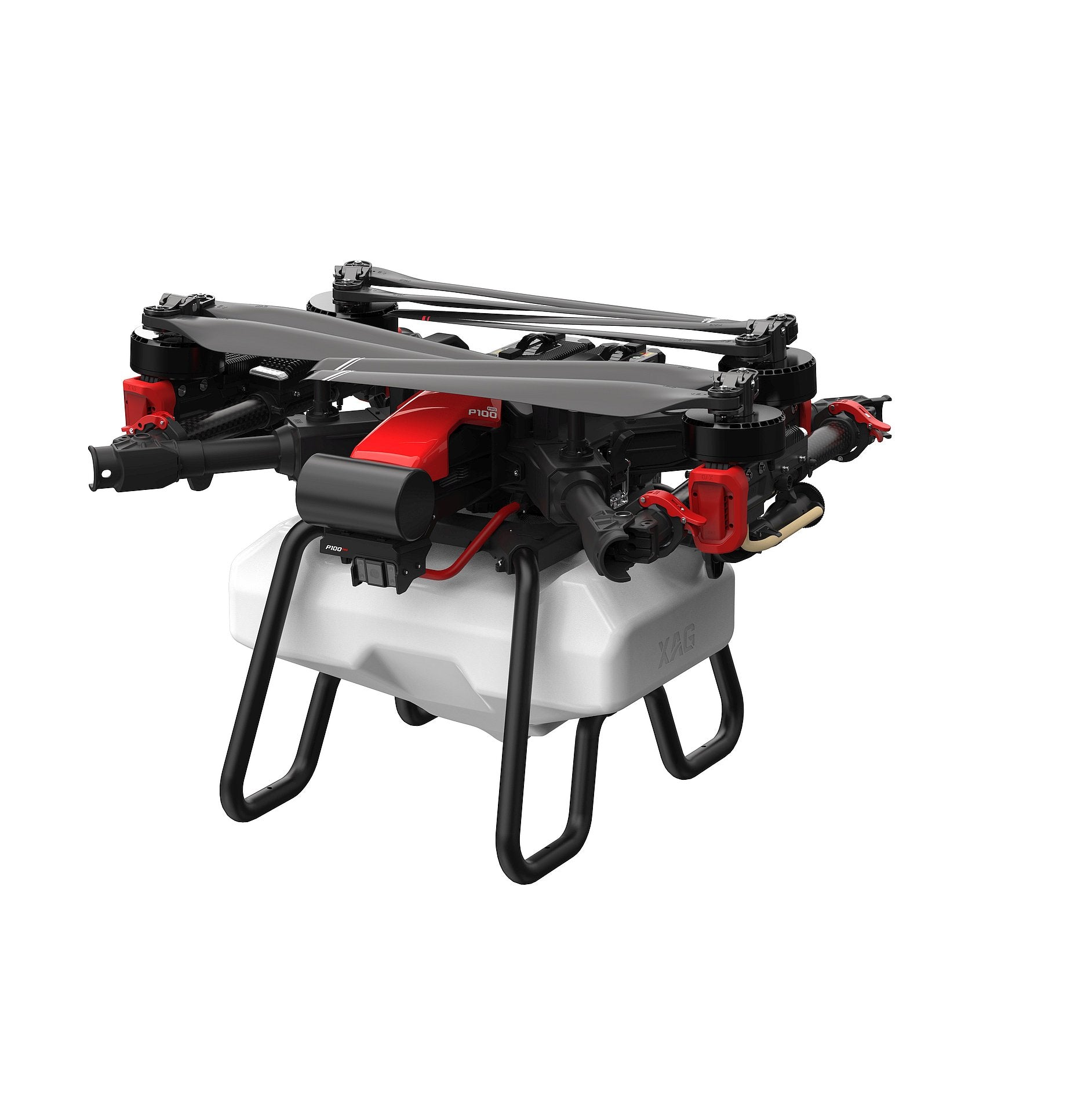

XAG RevoSpray 3
Upgraded dual peristaltic pump,with22L/min flow rate and50L large tank capacity.Deliver spraying to the fullest even at high speed.With the rotary nozzles, it's up to you to select large droplets for drift prevention and fastspraying, or small and delicate droplets for precision spraying.

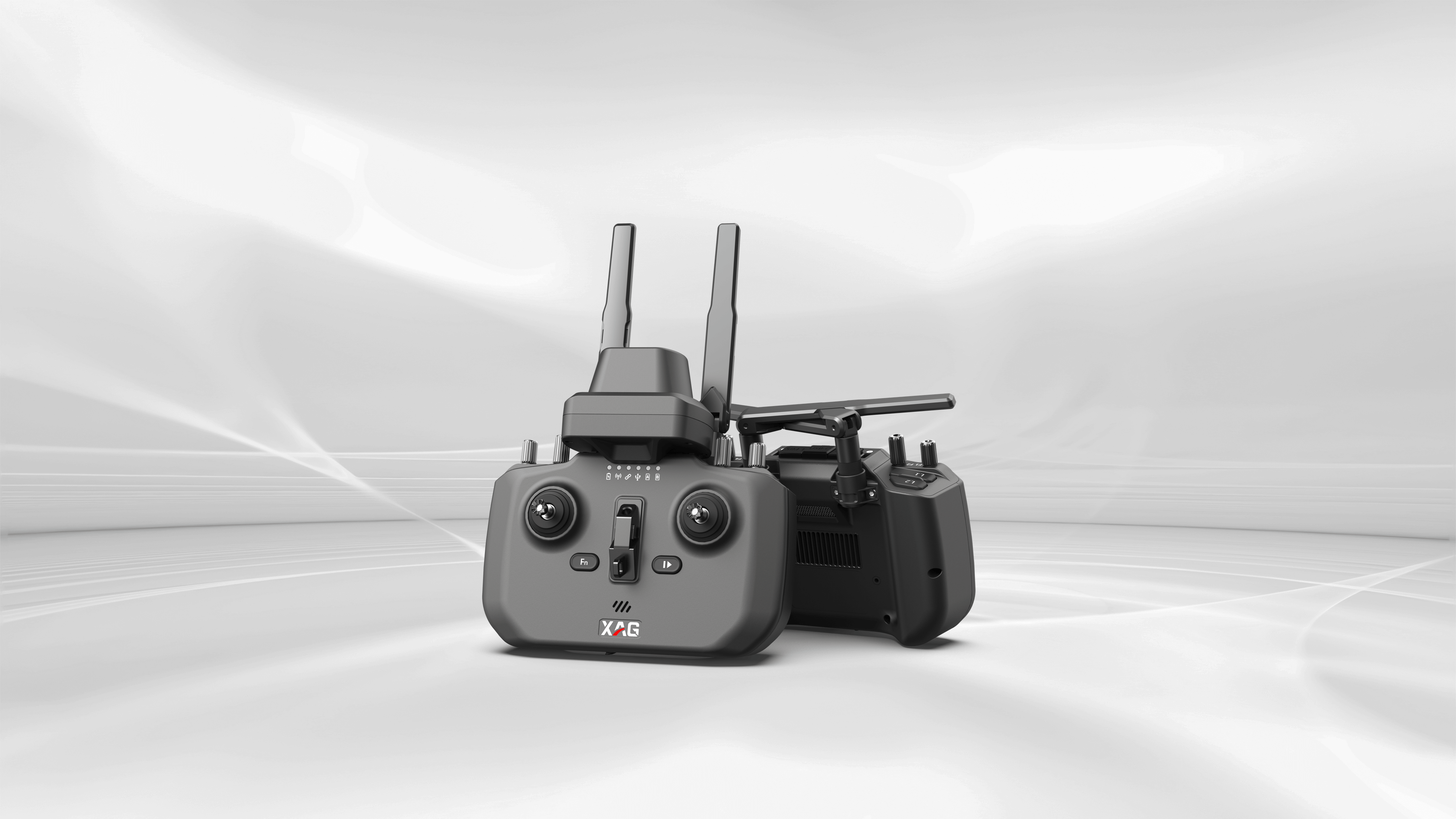

(ARC3 Pro)

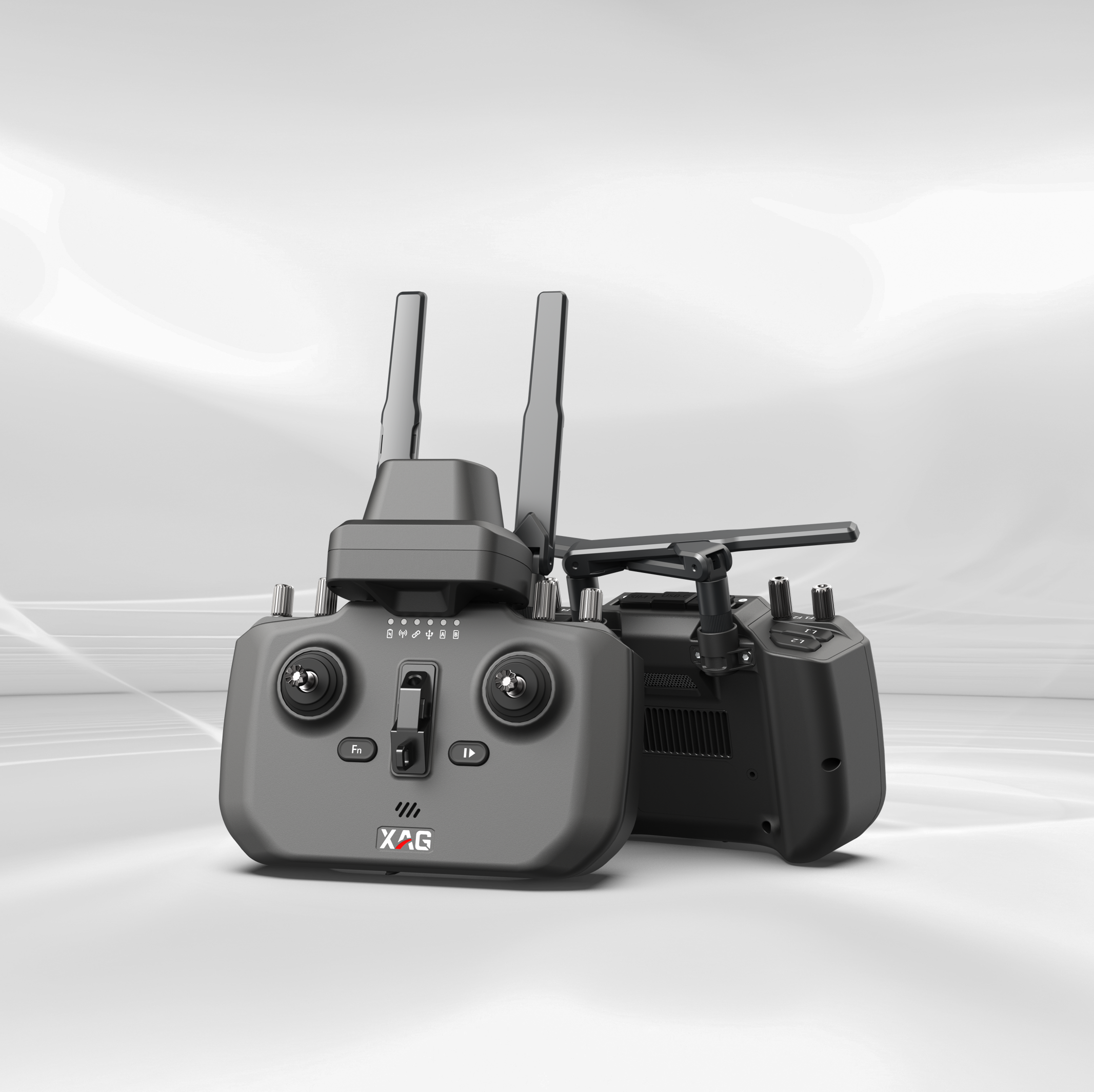

XAG Agricultural Remote Controller 3 Pro

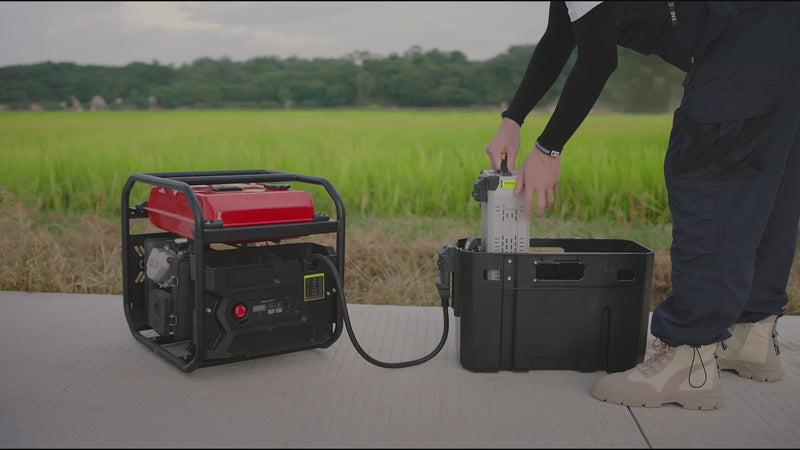

Water cooling power solution
Efficient heat dissipation is the key to continuous operation of agricultural drones in hot weather. XAG power systemadopts the water-cooling charging technology to effectively dissipate heat, one battery can be fully charged in11 minutes 18. With four batteries and two charges, P100 Pro can work at full capacity.
