XAG 4-Nozzle Upgrade Kit (INTL)

Enhance your XAG drone's spraying performance with the XAG 4-Nozzle Upgrade Kit (INTL) – the official upgrade set that transforms the centrifugal spraying system from 2 to 4 nozzles, boosting workload capacity for intelligent, precise, and efficient crop protection.

Compatible exclusively with XAG P150 Max 2025 and P150 2024 agricultural drones, this kit provides a flexible production solution for professional farmers.

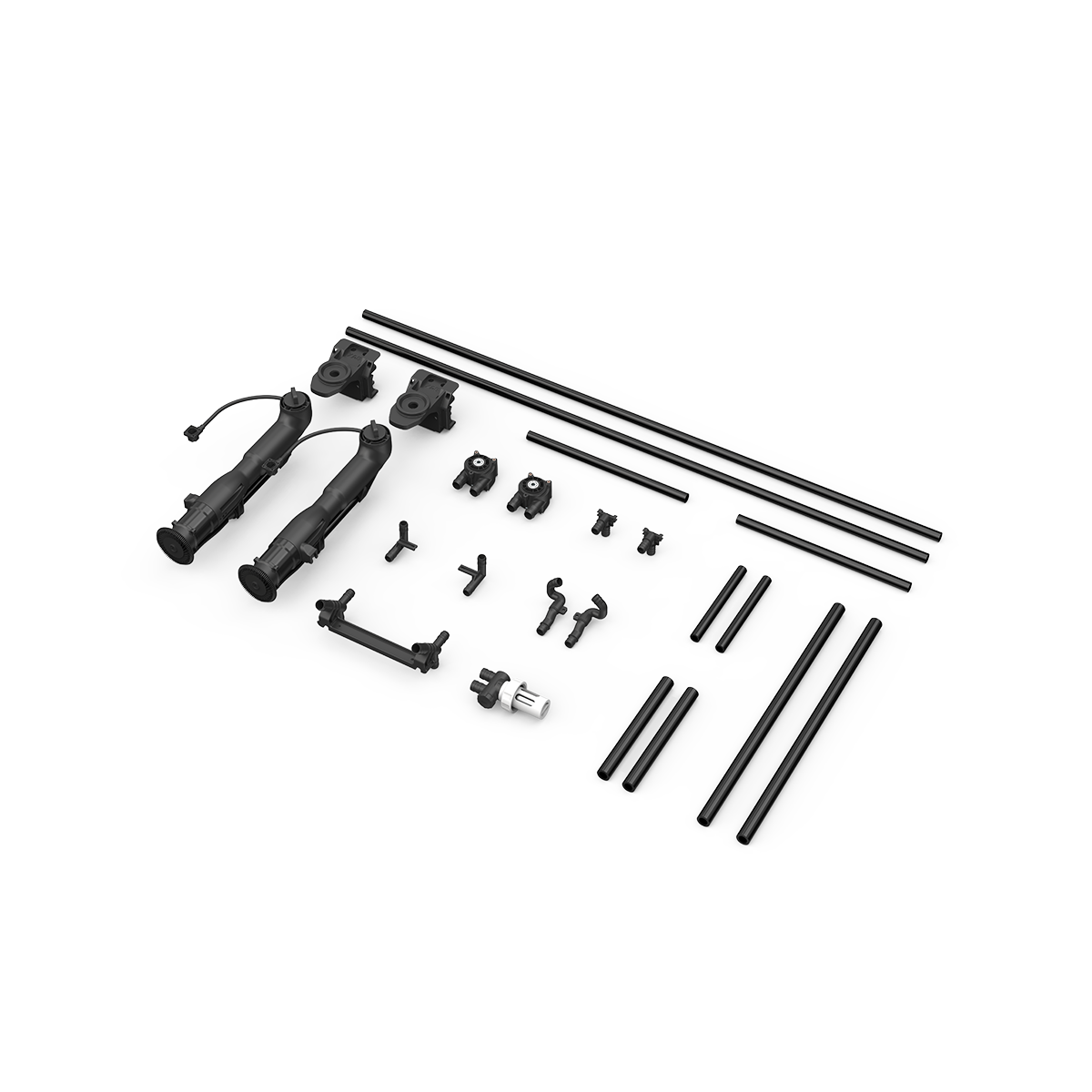

Included in the Kit:

• Right Spray Rod x1
• Left Spray Rod x1
• Left/Right Spray Rod Mount x1 each
• Left/Right Tube Fitting x1 each
• Left/Right L-Shaped Fitting x1 each
• Outlet Fitting x1
• Pump Unit x2
• L-Shaped Tube Fitting x2
• T-Piece Connector x1
• Vertical Tube x2
• Horizontal Tube x2
• RevoSpray Liquid Tube x4
• Arm Liquid Tube x2
• Dual Pump Bracket x1
• Screw Kit x1

Installation & Use:

• Step-by-step assembly for impeller pumps, liquid tubes, and spray rods.
• After installation, perform manual spraying test and calibration in the XAG One app.
• Reduce tank capacity by at least 1.2L for operations.

Maintenance:

• Clean with a soapy water/laundry powder mixture, rinse with clean water, and dry thoroughly.

The international (INTL) version ensures compliance and reliability worldwide.

Key Benefits:

• Doubles the nozzle count for higher spray efficiency
• Easy upgrade with detailed manual
• Compatible with 2025 High-Flow Nozzles (recommended for P150 2024)
• Improves overall drone performance in crop protection
