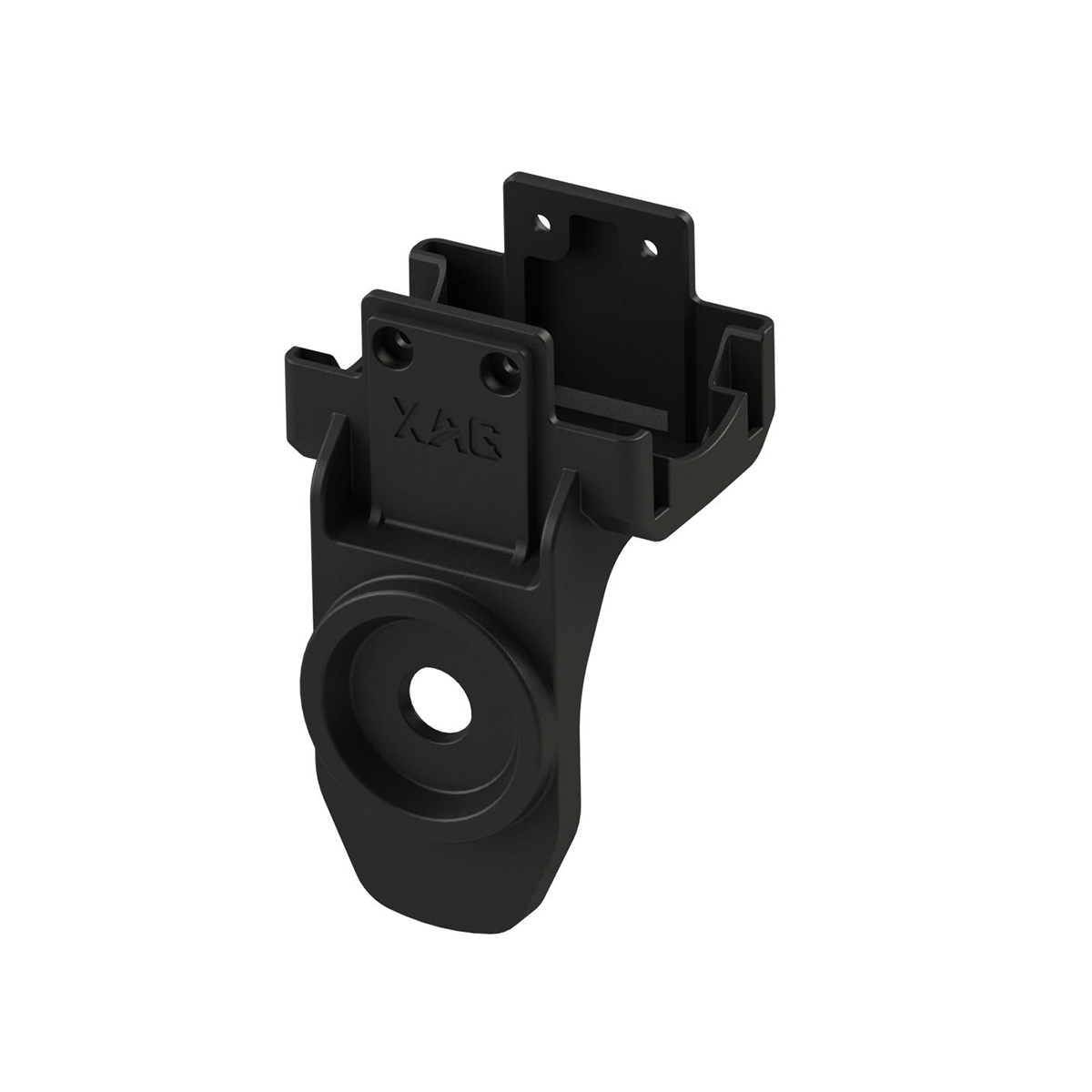

XAG Nozzle Extension Rod Bracket Left
The Nozzle Extension Rod Bracket Left is a replacement mounting component designed for compatible XAG agricultural drone spraying systems. It supports the left-side nozzle extension rod and helps keep the spraying assembly correctly positioned during field operation.
This component may require replacement if the original bracket is cracked, bent, deformed, loose, or damaged by impact, vibration, or extended use. A secure and correctly aligned bracket helps maintain the position of the nozzle extension rod and supports stable spraying performance.
The Nozzle Extension Rod Bracket Left is intended specifically for the left side of the corresponding spraying assembly. Left-side and right-side brackets may appear similar but can differ in orientation, mounting geometry, fastener position, or cable and tube routing. Before ordering, confirm that the left-side version is required for your equipment.
Compare the product image, dimensions, mounting points, part number, SKU, and equipment model with the component currently installed on your XAG system. Selecting the correct replacement part helps simplify installation and reduces the risk of incorrect nozzle alignment.
Replacement may be necessary if the existing bracket has visible cracks, broken mounting points, damaged fastener holes, excessive movement, corrosion, or deformation. A loose or damaged bracket may allow the extension rod to move during operation, which can affect nozzle position and spraying consistency.
Inspect the nozzle extension rod, nozzle assembly, liquid tubes, fasteners, mounting surfaces, and nearby structural components before installation. If related parts are worn or damaged, they may also require maintenance or replacement.
Installation should be performed by a qualified technician or an operator familiar with XAG equipment maintenance. Disconnect the equipment from all power sources before beginning the repair. Remove the damaged bracket carefully and inspect the installation area for cracks, debris, deformation, or worn hardware.
Position the replacement Nozzle Extension Rod Bracket Left according to the original assembly configuration. Use the specified fasteners and tighten them evenly. Avoid excessive force, as overtightening may damage the bracket, mounting surface, or surrounding components.
After installation, verify that the extension rod is correctly aligned and securely supported. Confirm that the nozzle, tubes, cables, and related components are not pinched, stretched, twisted, or in contact with moving parts.
Complete the recommended inspection and system checks before returning the equipment to field operation. Stop operation if the bracket becomes loose or if the nozzle extension rod does not remain correctly positioned.
Agrifuture provides access to XAG replacement parts, spare-parts inventory, technical assistance, and professional service support in the United States. To confirm compatibility, provide the equipment model, product SKU, photographs of the existing component, and a description of the required repair.
Check current pricing and availability before ordering the Nozzle Extension Rod Bracket Left for compatible XAG equipment.
