XAG P150 Ultimate 14KW 6B4C Kit
XAG P150 Ultimate 14KW 6B4C Kit Agricultural Spray Drone
Configuration:
- 1x XAG P150 Max Agricultural Drone with RevoSpray 5 (SKU: 09-007-00158)
- 6x B141050 Smart SuperCharge Batteries (20000mAh) (SKU: 09-017-00083)
- 4x CM13600S Smart Chargers (3400W) (SKU: 09-017-00069)
- 2x XAG 2024 Battery Cooling Tower (SKU: 09-017-00065)

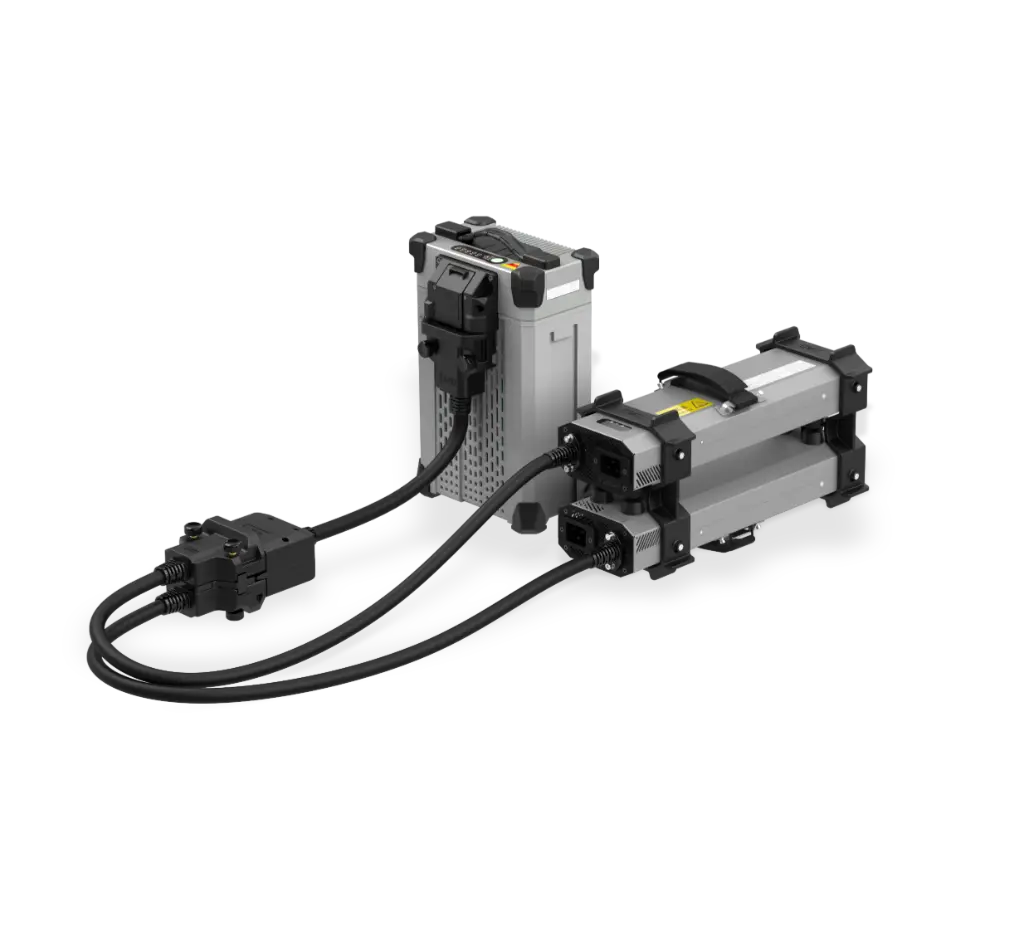

- 2x XAG 6kW Parallel Charging Kit (SKU: 05-002-02311)
- 1x XAG SRC5 Smart Remote Controller (SKU: 09-016-00085)
- 1x XRTK7 Mobile Station (RTK Rover) (SKU: 09-016-00083)
- 1x XAG P150 Max RevoCast 5 (with Screw Feeder M) (SKU: 09-023-00146)
Product Features
- Ultra-Precise RTK Positioning - ±10cm accuracy
- 4D Radar Obstacle Avoidance - 360° protection
- Large 80L Spray Capacity - Extended operation time
- 14.5 Hectares/Hour Efficiency - Maximum productivity
- Dual Pump System - 32 L/min total flow rate
- Advanced Terrain Following - Automatic height adjustment
- Long Flight Time - 20 min hovering (no-load)
- Heavy Payload Capacity - Up to 136kg takeoff weight
- Multi-Battery System - Continuous field operations
- Dual Remote Controller Options - Flexibility for all users
- Smart App Control - Comprehensive operation management
- Multi-Field Capability - Up to 10 fields in one session
- All-Weather Design - IPX6K waterproof rating
- Cloud Connectivity - Real-time data and updates
- Professional Build Quality - Aerospace-grade materials

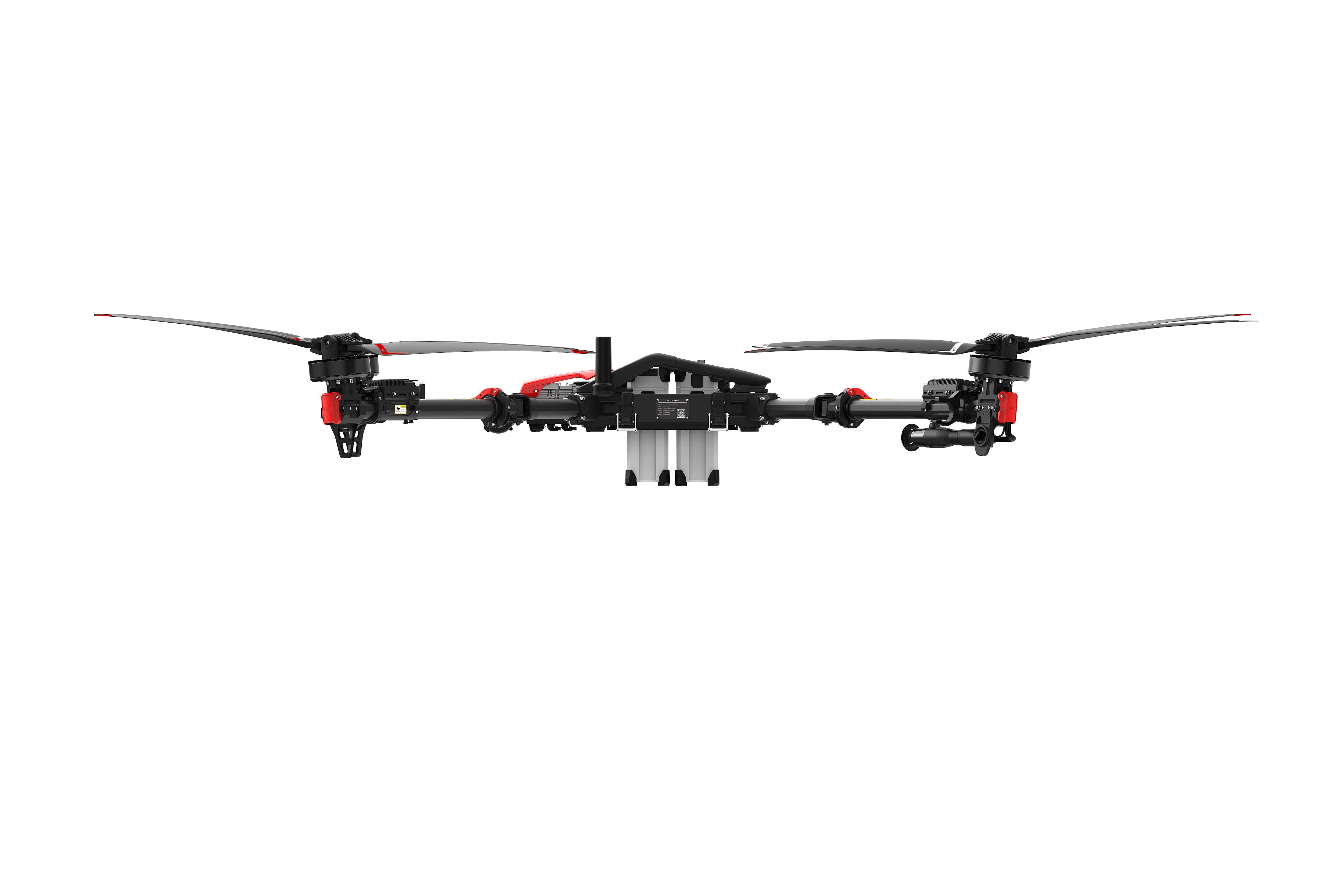

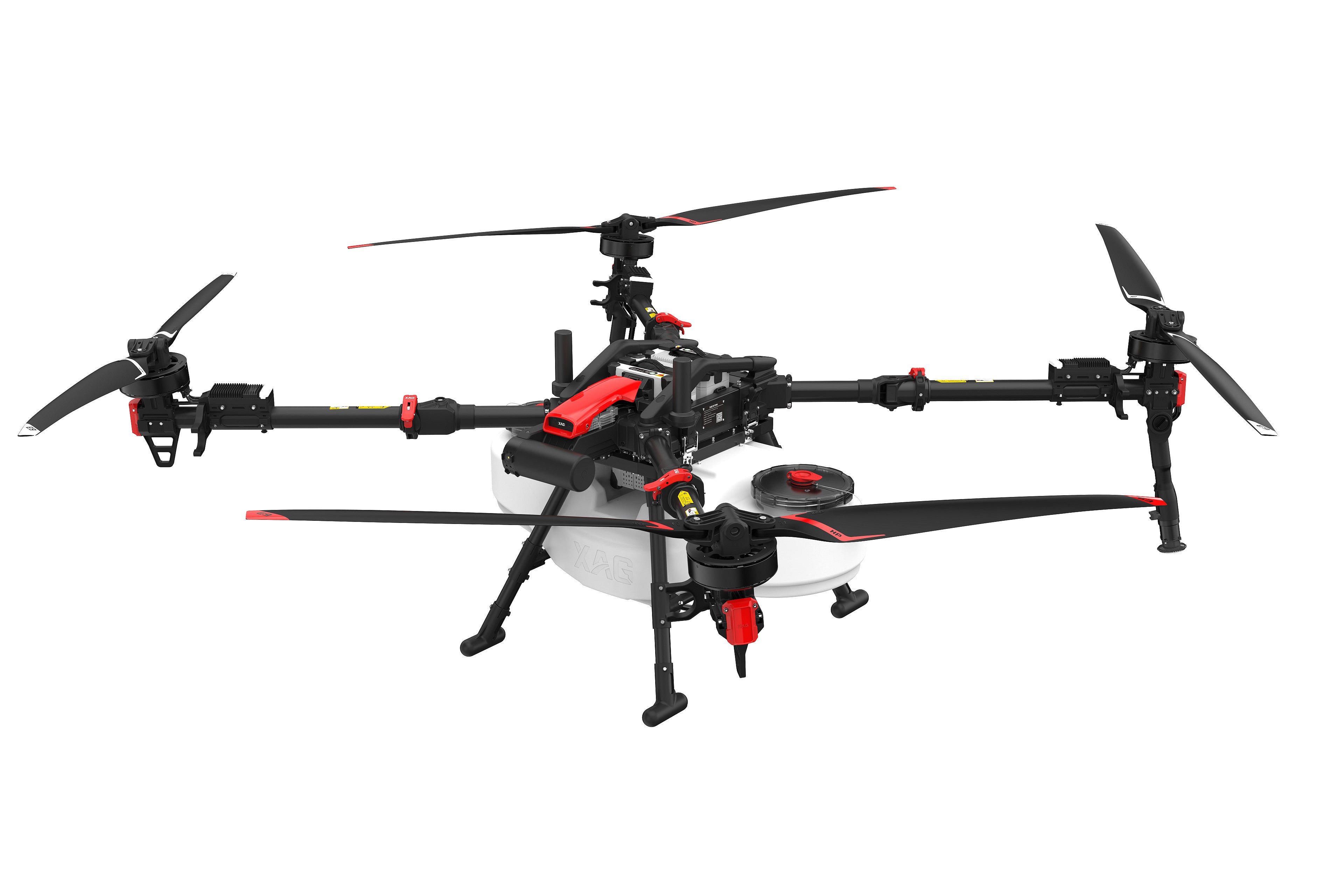

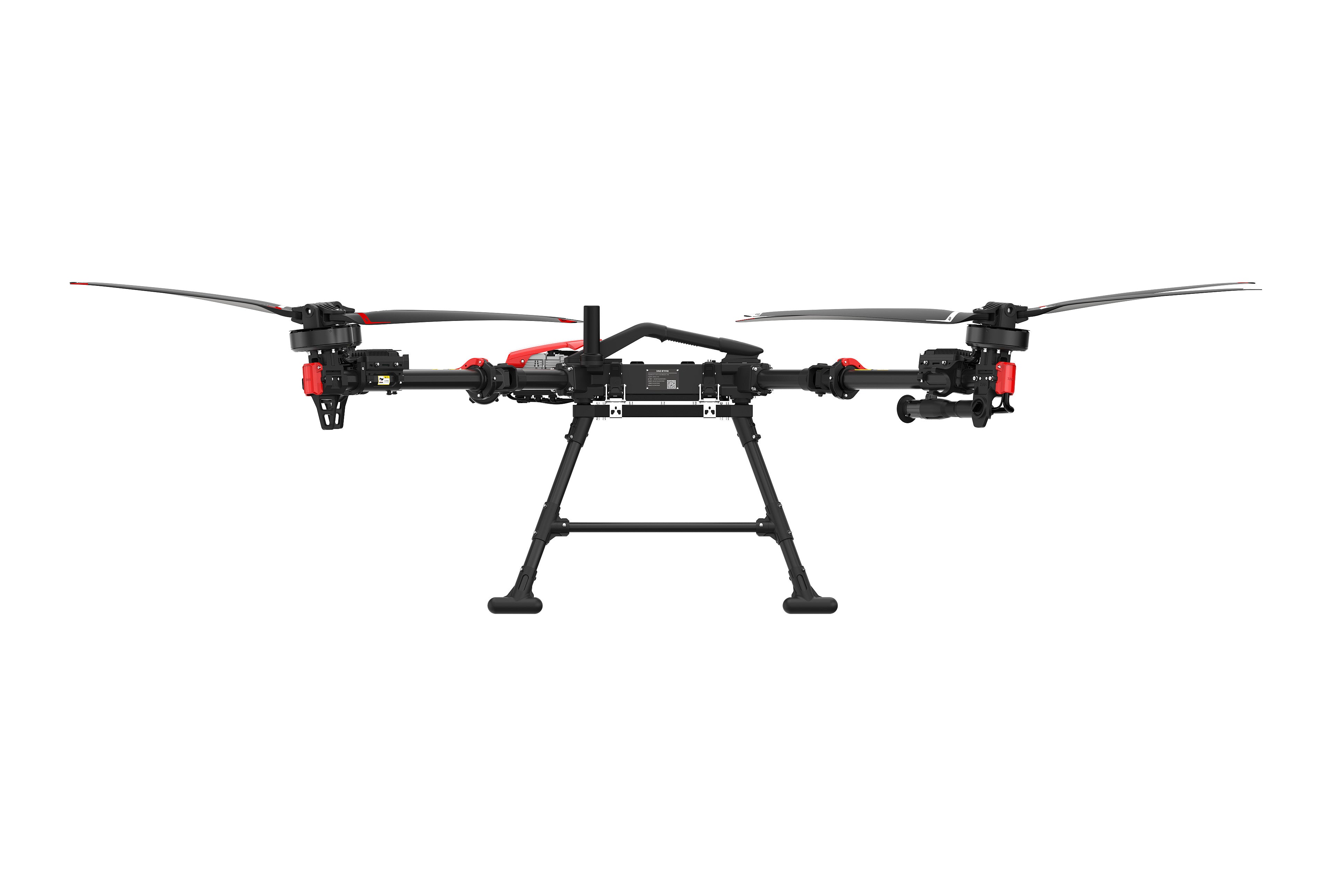

Aerial Platform
| Parameter | Details |
|---|---|
| Dimensions (Unfolded) | 3250 × 3254 × 765 mm (with RevoSpray 5) |
| Dimensions (Folded) | 1798 × 1807 × 765 mm (propellers folded) |
| Empty Weight | 56-60 kg (depending on module) |
| Max Takeoff Weight | 136 kg (spraying) / 140 kg (spreading) |
| Diagonal Wheelbase | 2335 mm |
| Protection Rating | IPX6K |
| Max Flight Speed | 20 m/s |
| Hovering Precision (RTK) | ±10 cm horizontal/vertical |
Propulsion & Spraying System
| Motors | 4 × 4850 W rated power |
| Propellers | 63-inch foldable carbon fiber |
| Spray Tank | 80 L / 80 kg payload |
| Flow Rate | Up to 32 L/min (dual pumps) |
| Droplet Size | 60-500 μm |
| Spray Width | 5-10 m |
Spreading & Sensing Systems
| Granule Container | 115 L / 80 kg max load |
| Spread Rate | Up to 300 kg/min |
| Spread Width | 5-9 m |
| 4D Radar | 1.5-100 m detection, ±40° horizontal FOV |
| FPV Camera | 1080p 30 fps, wide-angle |
Power & Control
| Battery | B141050 (1050 Wh, 20000 mAh) |
| Charge Time | 7 minutes (parallel supercharge) |
| Remote Controller | SRC5 (7-inch screen, 8-hour battery, 2 km range) |
Note: Performance may vary based on the environment. Always follow local regulations. Contact for demos or customization.
Built to Last
The robust industrial design features a low-drag airframe that reduces energy use while enhancing performance.

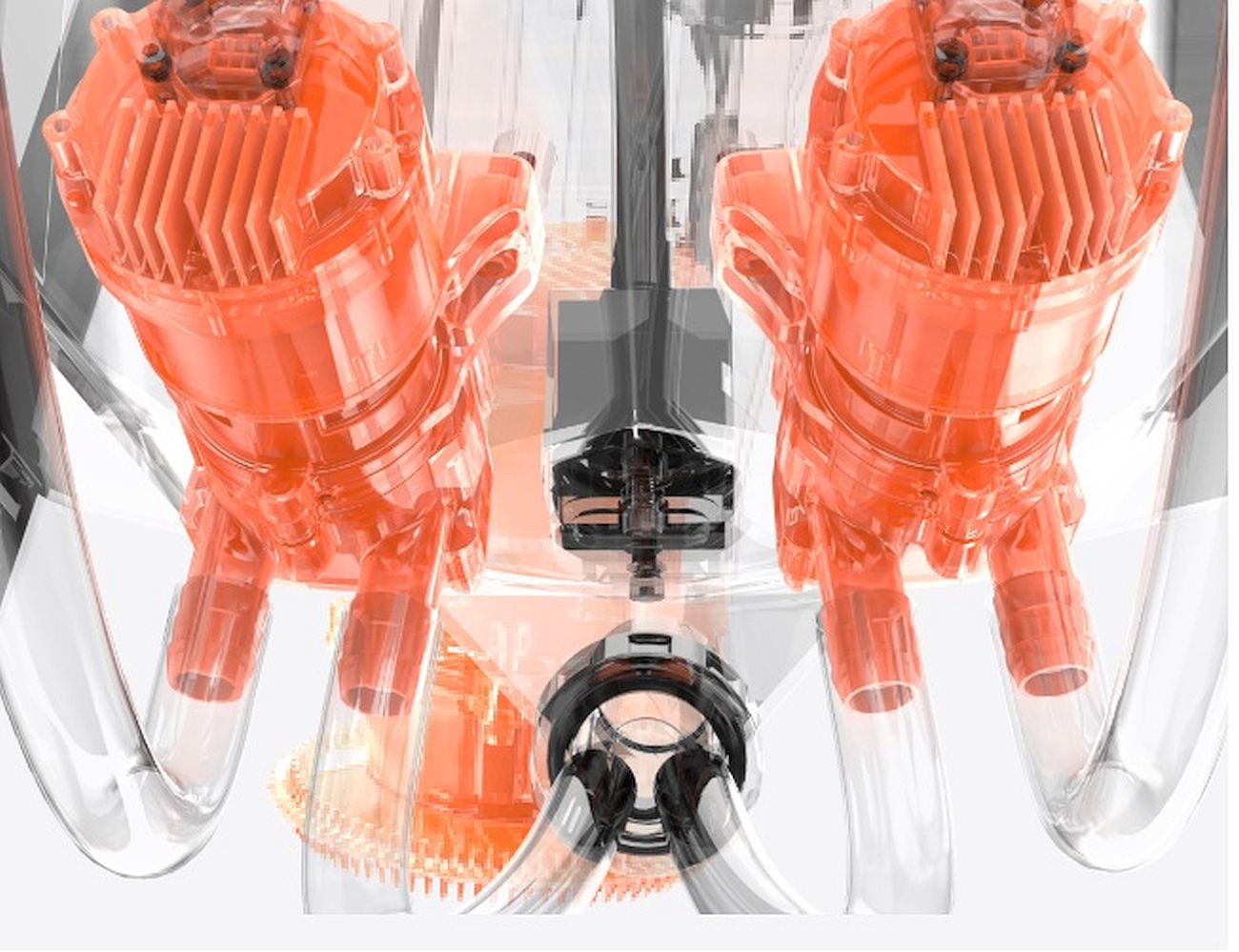

Flexible Impeller Pumps
Each pump delivers a maximum flow of 16 L/min and features a chemical-resistant impeller, which extends the service life to over 300 hours and reduces the need for frequent replacements.

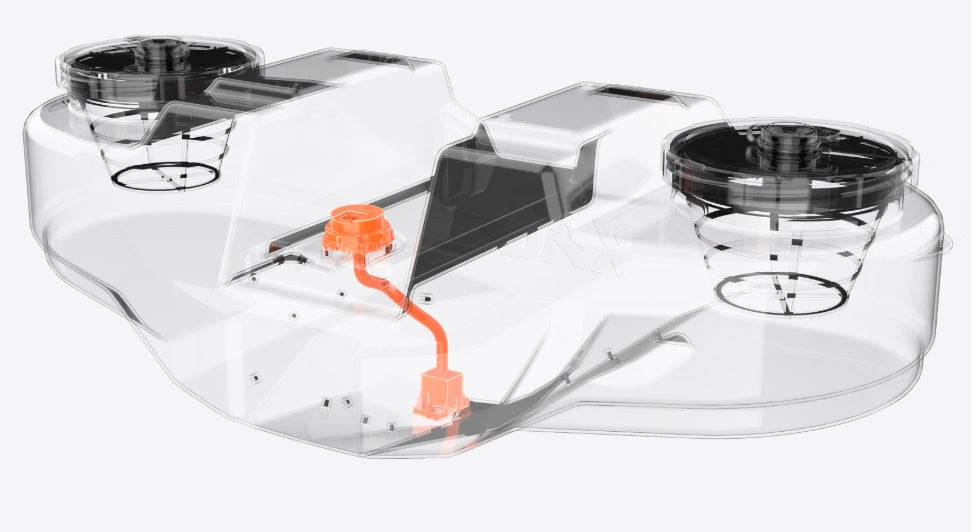

Smart Liquid Tank
The liquid level sensor features a capillary pneumatic design that accurately detects remaining chemical volume.
XAG RevoSpray5

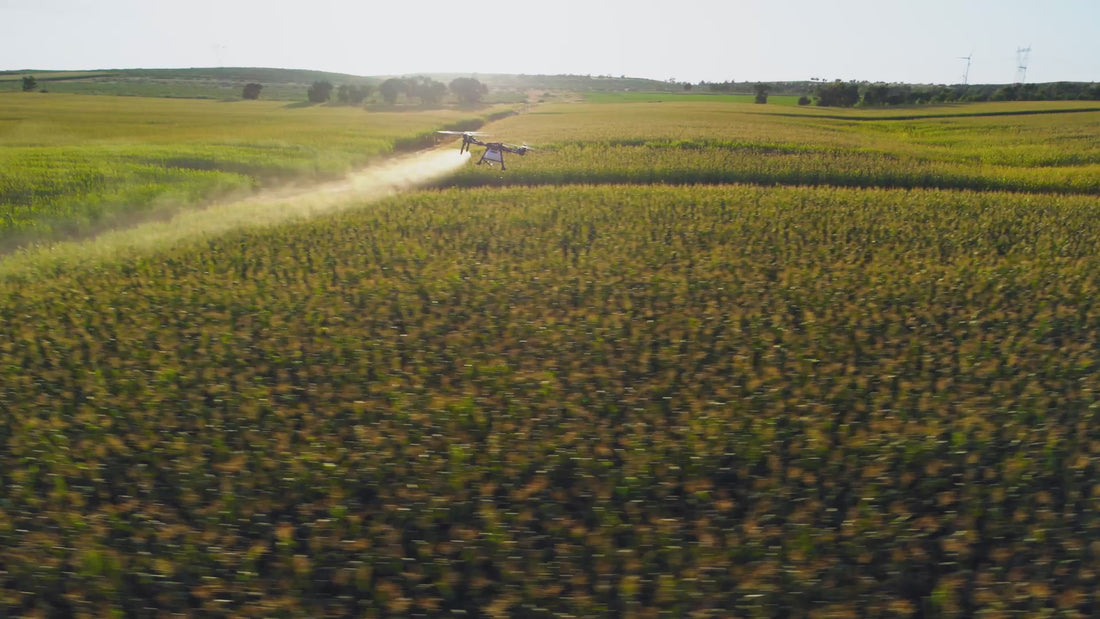

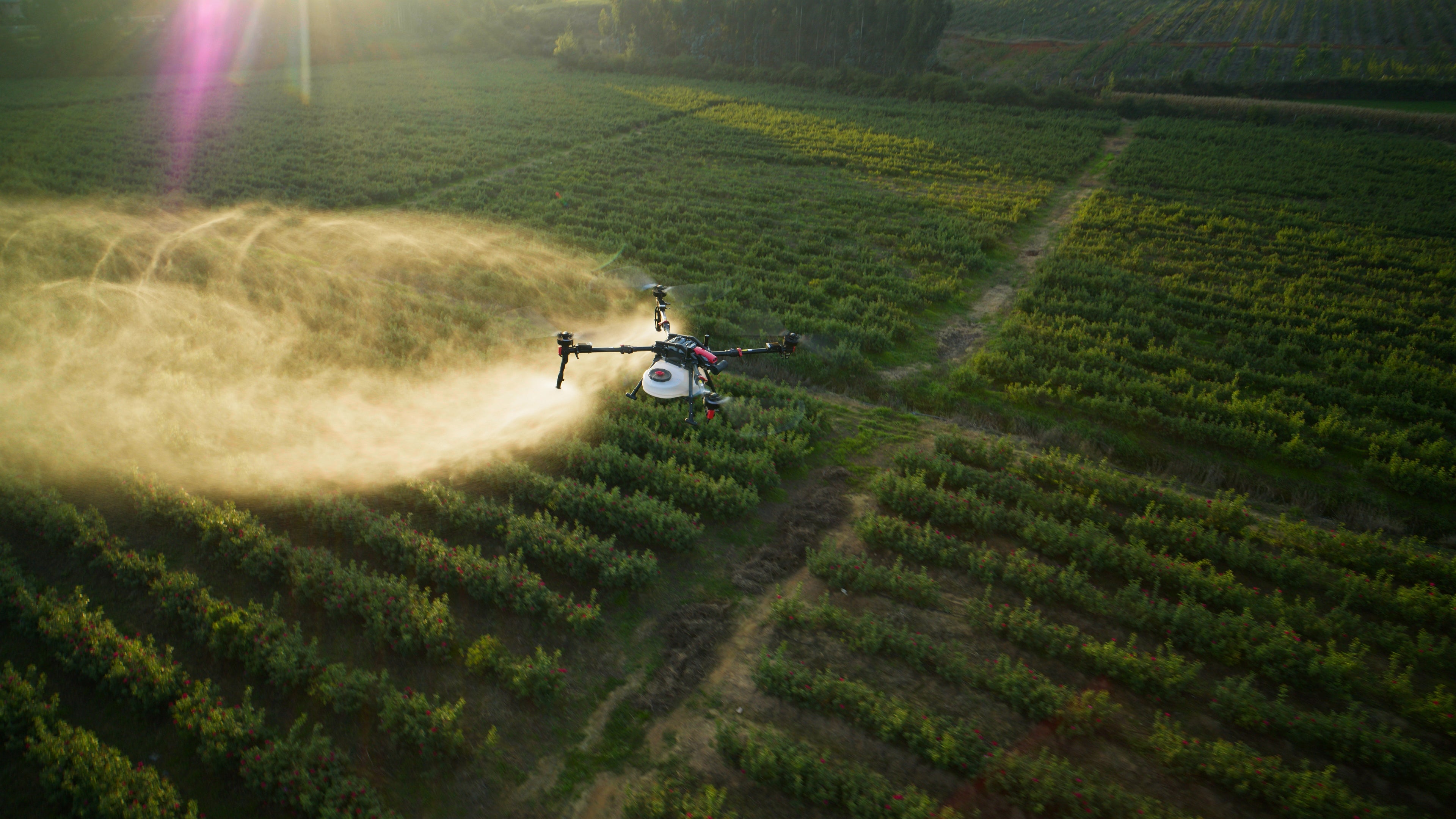

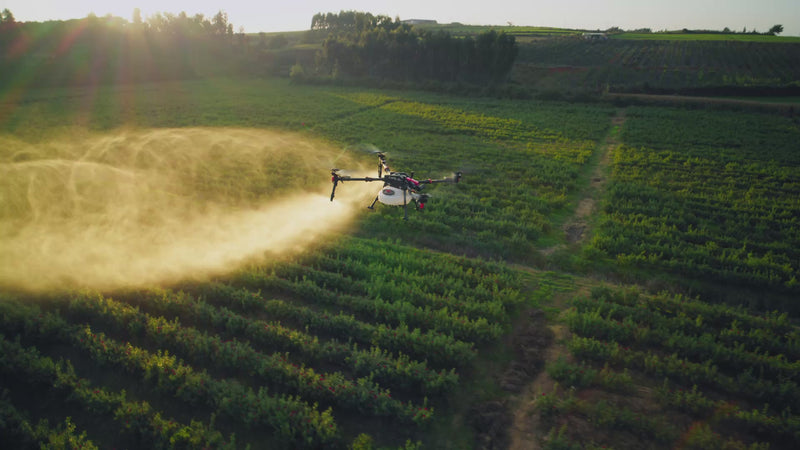

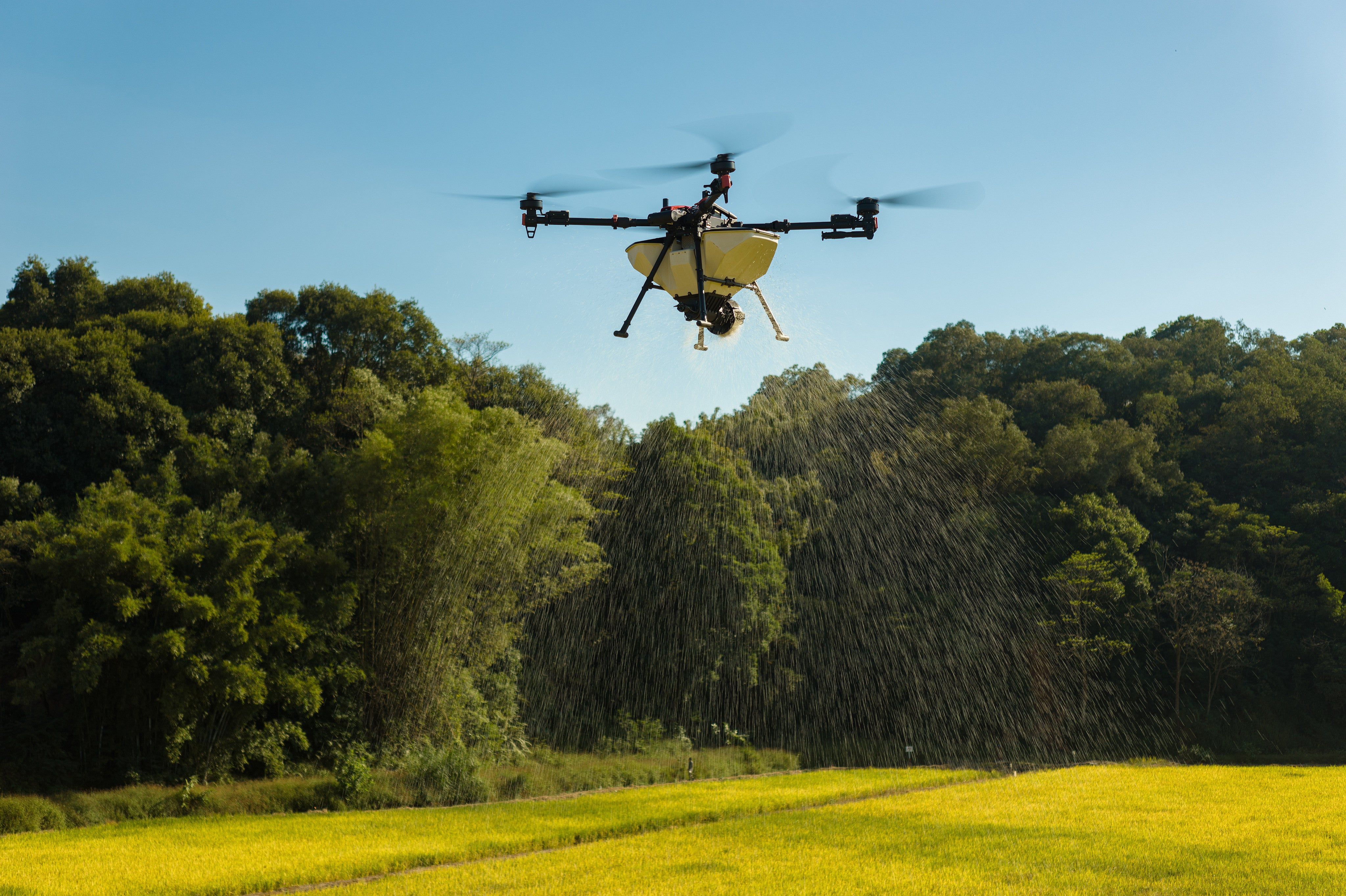

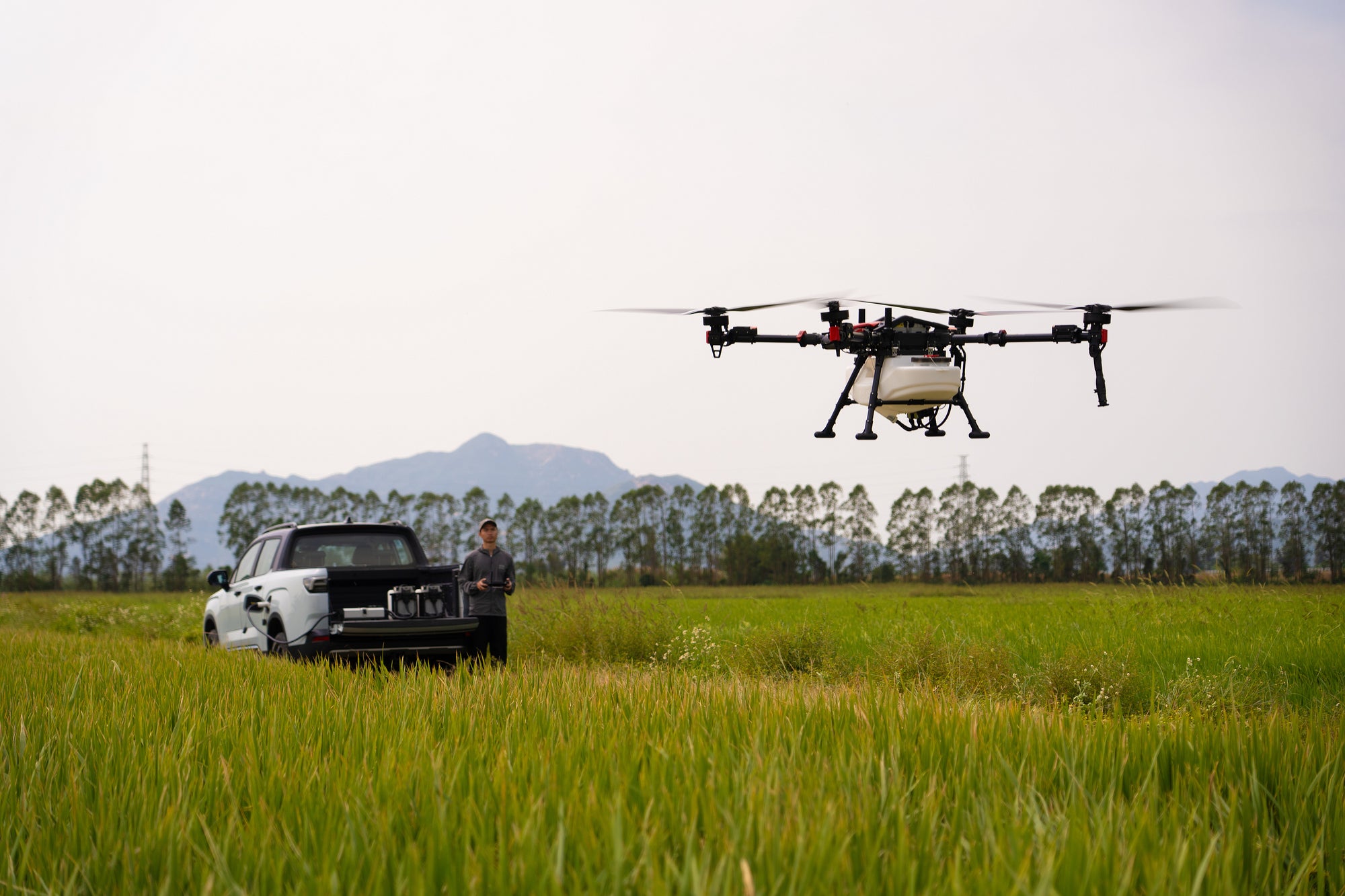

Equipped with an 80‑liter tank and capable of speeds up to 20 m/s, the P150 Max sets a new standard for precise and efficient spraying. With greater coverage per flight and fewer refills, it enhances productivity in large-field operations. The four-rotor design generates a powerful downdraft that drives droplets through dense canopies for uniform coverage, making high-volume spraying in orchards more effective than ever.
XAG SuperX 5 Ultra Intelligent Control System
The Super Brain That Thinks Ahead
A wide-angle FPV camera works with AR overlays to display real-time 3D markers for obstacles and their distances. The drone automatically hovers when anomalies are detected, ensuring safe takeoff and landing.
Enable fully autonomous terrain following over rugged fields and mountainous orchards without pre-flight mapping. Unmapped areas are converted into actionable 3D maps in real time, making each pass progressively more efficient.
Maintain a smooth 20 m/s flight while spraying or spreading across sloped farmland, ensuring uninterrupted and efficient application.

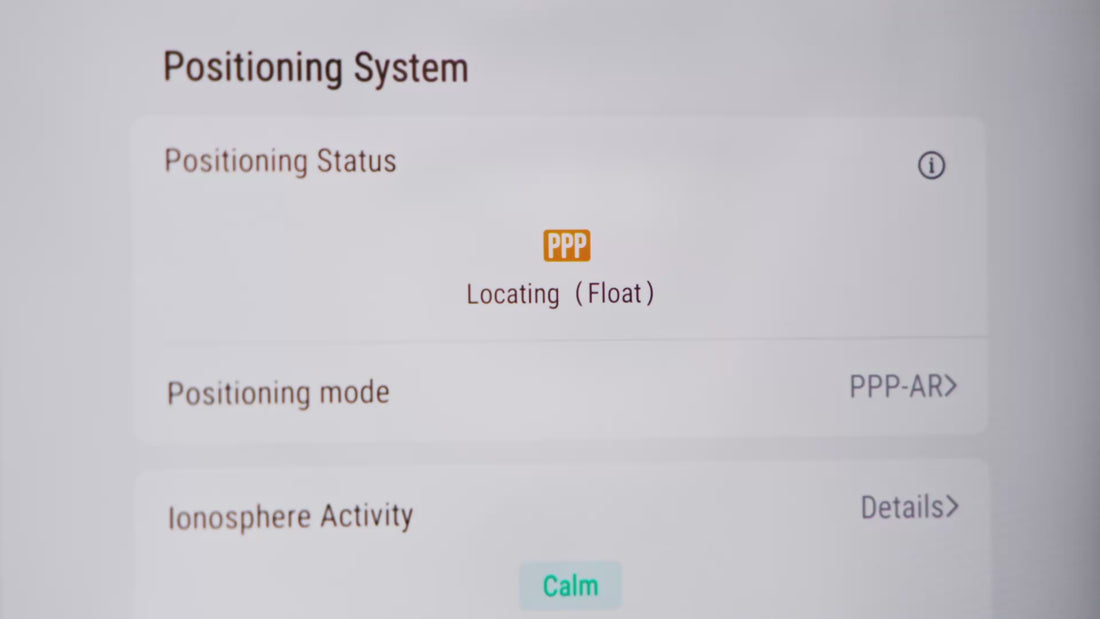

Powered by GNSS satellites, the P150 Max achieves centimeter-level positioning without ground base stations. PPP-AR technology delivers RTK-level accuracy with a simpler setup and minimal equipment, enabling more flexible precision operations.
A wide-angle FPV camera works with AR overlays to display real-time 3D markers for obstacles and their distances. The drone automatically hovers when anomalies are detected, ensuring safe takeoff and landing.
Easy-to-Use, Fully in Control

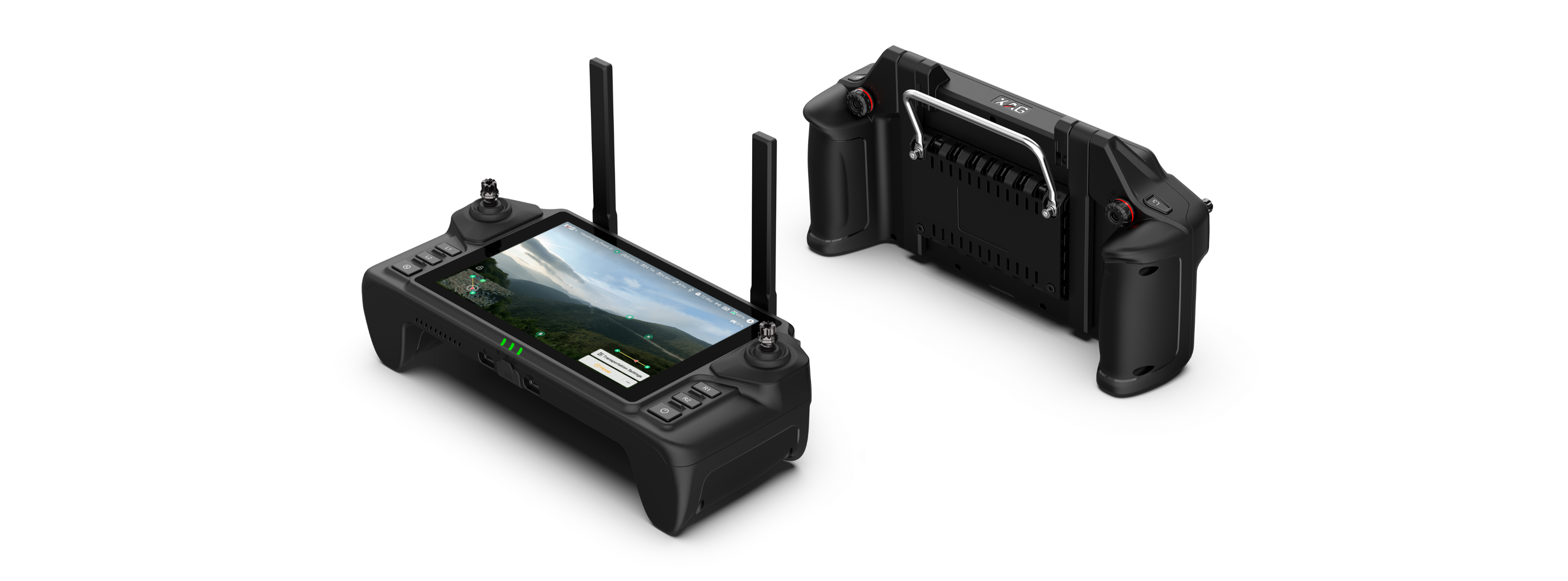

XAG SRC 5 Smart Remote Controller
Rapid Charging, Less Downtime
Two battery sets keep operations running continuously, even in the hottest summer.
